EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in, XQS Flow Pattern
EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in, XQS Flow Pattern
SKU:VAL-e18481
Enhance fluid control with EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in, XQS Flow Pattern. Designed for precision and durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in, XQS Flow Pattern
$129.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in, XQS Flow Pattern
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with the EB Series Encapsulated 3-Way Ball Valves crafted from durable Alloy C-276. These valves feature a Cv of 0.75, modified PTFE packing, and a unique XQS flow pattern for precise control. The blue Nylon handle with a stainless steel insert ensures reliability and longevity. With connections designed for 1/4 inch Female BSPT fittings, these valves are engineered to perform in temperature ranges from -65 to 300°F. Trust in the EB Series for efficient fluid handling and durability that meets the highest industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

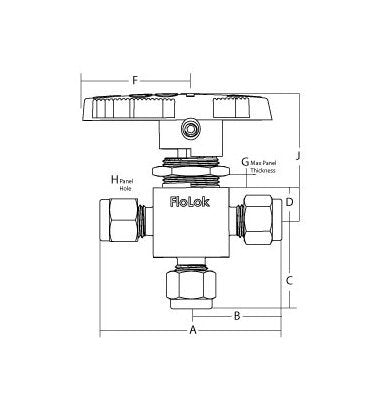

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
