EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

VAL-f2c5b7

Enhance your system efficiency with EB Series Encapsulated Angle Ball Valves - ideal for industrial fluid control.

$69.99
$69.99
Sale

Initiate Order

EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

$69.99

Quantity: 1

Claim Your Seller Account

EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

EB Series Encapsulated Angle Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

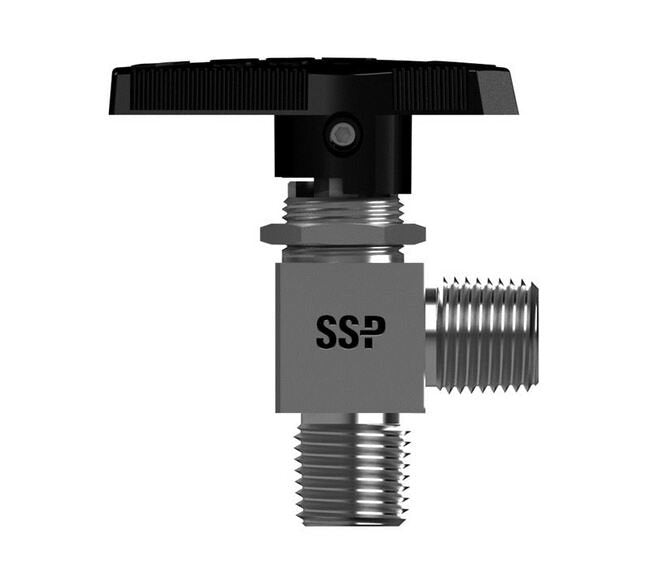

Upgrade your fluid control system with the EB Series Encapsulated Angle Ball Valves made of 316 SS for durability. Featuring 1/4-18 MNPT connections, a Cv of 0.75, and modified PTFE packing, these valves ensure reliable performance in demanding environments. With a working pressure of 2500 psig and a wide temperature range (-65 to 300°F), these valves are ideal for industrial applications. The black Nylon handle with a Stainless Steel insert and locking hardware add convenience and security. Trust in the EB Series for efficient and enduring fluid handling.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

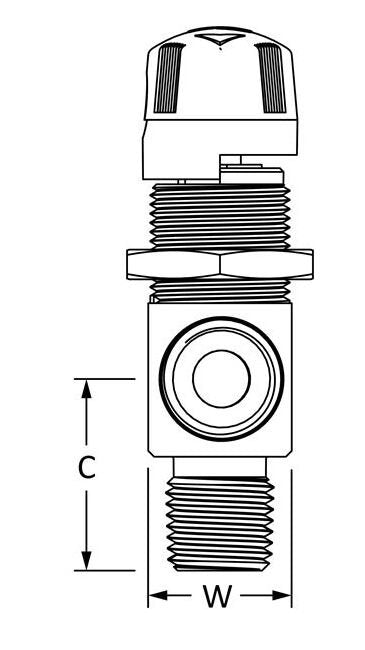

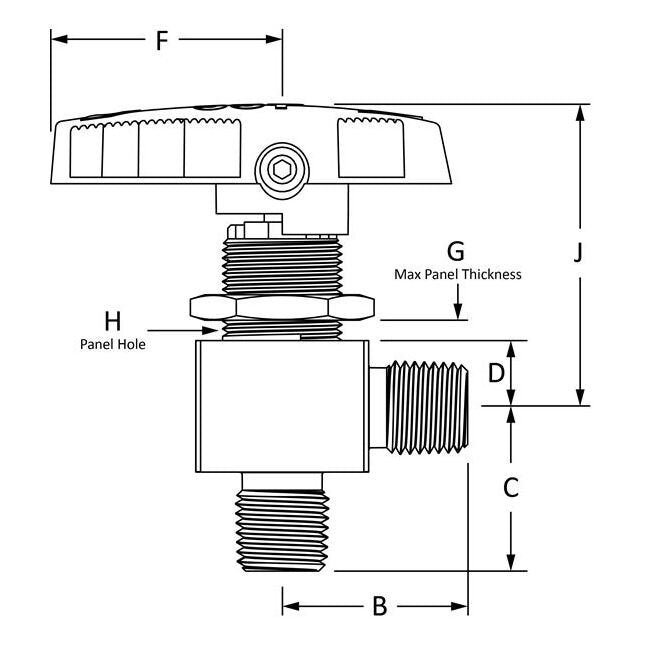

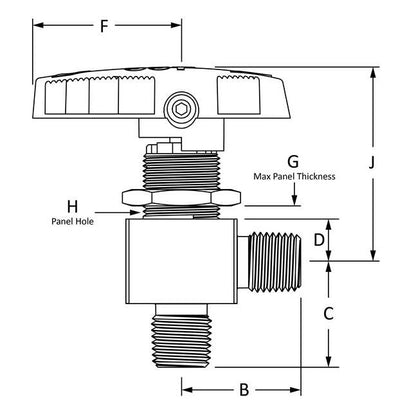

Dimensions B
1 in | 25.4 mm
Dimensions C
1.03 in | 28.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 47.2 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
0.75
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PM-316
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
