EB Series Encapsulated Angle Ball Valves, 316 Stainless Steel, 1/2-14 FNPT, Cv 3.5
EB Series Encapsulated Angle Ball Valves, 316 Stainless Steel, 1/2-14 FNPT, Cv 3.5
SKU:VAL-b23c7d
Enhance fluid control with EB Series Angle Valves - 316 SS, 1/2-14 FNPT, Cv 3.5. Perfect for industrial use!
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EB Series Encapsulated Angle Ball Valves, 316 Stainless Steel, 1/2-14 FNPT, Cv 3.5
$89.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated Angle Ball Valves, 316 Stainless Steel, 1/2-14 FNPT, Cv 3.5
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control with EB Series Encapsulated Angle Ball Valves. Crafted from durable 316 stainless steel, these valves offer precise flow control with a Cv of 3.5. The modified PTFE packing ensures a secure seal, enhancing safety. Featuring a green nylon handle with a stainless steel insert and locking hardware, these valves provide reliability and convenience. Operating under pressures up to 1500 psig and temperatures ranging from -65 to 150°F, these valves meet stringent industry standards for performance and durability, making them ideal for demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

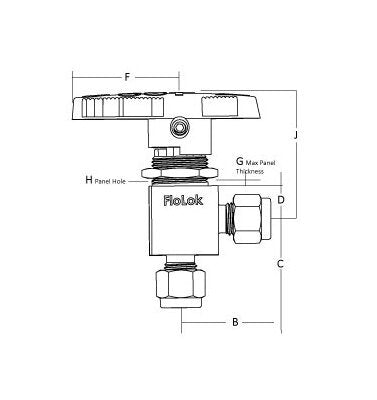

Dimensions B
1.56 in | 39.6 mm
Dimensions C
1.56 in | 39.6 mm
Dimensions D
0.69 in | 17.5 mm
Dimensions F
3.02 in | 76.7 mm
Dimensions G
0 in | 0 mm
Dimensions H
1 1/2 in | 38.1 mm
Dimensions J
2.57 in | 65.3 mm
Dimensions Panel Bore
1 1/2 in
Dimensions W
1.5 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/2-14
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/2-14
Specifications Connection 2 Type
FNPT
Specifications Cv
3.5
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.406 in | 10.3 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
Angle
Specifications Ssp Pn
45GA8PF-316
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Type
Ball
Specifications Working Pressure
1500 psig | 103 bar
