EB Series Encapsulated Angle Ball Valves - Brass 1/4-18 MNPT x Duolok 1/4in
EB Series Encapsulated Angle Ball Valves - Brass 1/4-18 MNPT x Duolok 1/4in
SKU:VAL-59662d
Durable EB Series Angle Ball Valves in brass with modified PTFE packing. Ideal for industrial applications, with high pressure and temperature range.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
EB Series Encapsulated Angle Ball Valves - Brass 1/4-18 MNPT x Duolok 1/4in
$69.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated Angle Ball Valves - Brass 1/4-18 MNPT x Duolok 1/4in
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control systems with the EB Series Encapsulated Angle Ball Valves. Crafted from durable brass and featuring a modified PTFE packing, these valves ensure a tight seal and reliable performance. With a working pressure of 2500 psig, temperature range of -65 to 300°F, and locking hardware for added security, these valves are ideal for rigorous industrial applications. The yellow nylon handle with a stainless steel insert offers a robust grip and control. Compliant with federal procurement standards and industry-specific certifications, these valves meet the highest quality and reliability requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

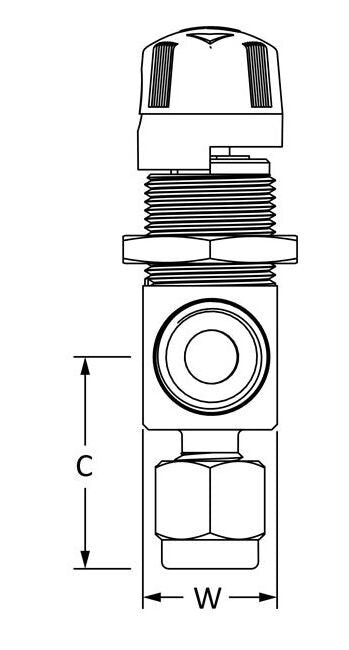

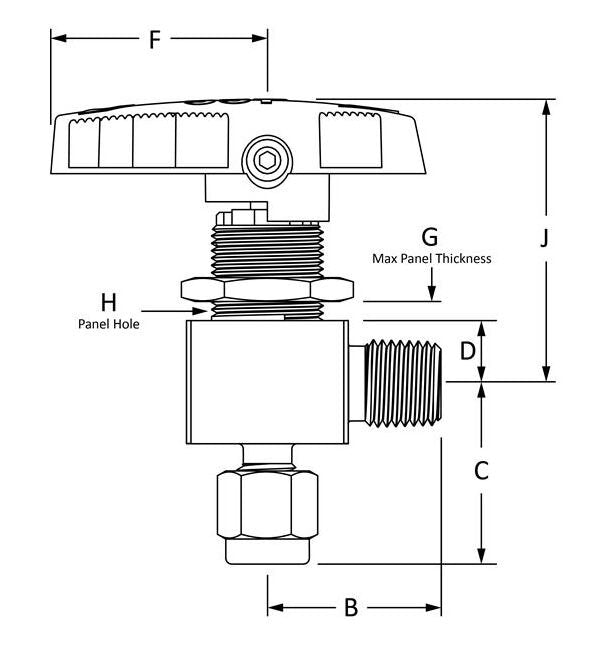

Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Duolok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PMD4-B
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
