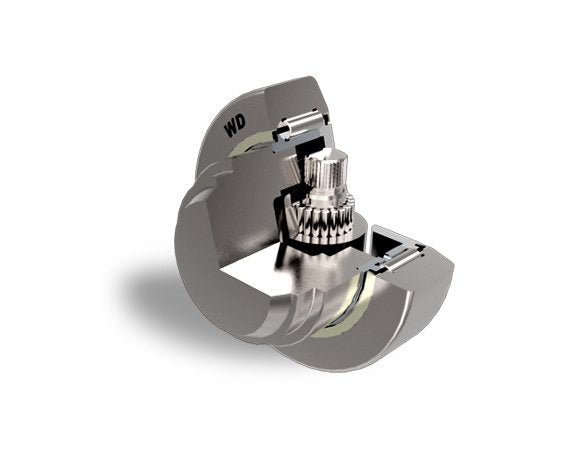

Eccentric Adjustable Combined Roller Bearings

Name: Eccentric Adjustable Combined Roller Bearings
Brand: WD Bearings
SKU: COM-37a35e
Price: 49.99 USD
Availability: OutOfStock

SKU:COM-37a35e

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Basic Co Load Rating

56.8 kN

Basic Load Rating Basic C Load Rating

48 kN

Basic Load Rating Dynamic Ca Basic Load Rating

18 kN

Basic Load Rating Static Coa Basic Load Rating

18 kN

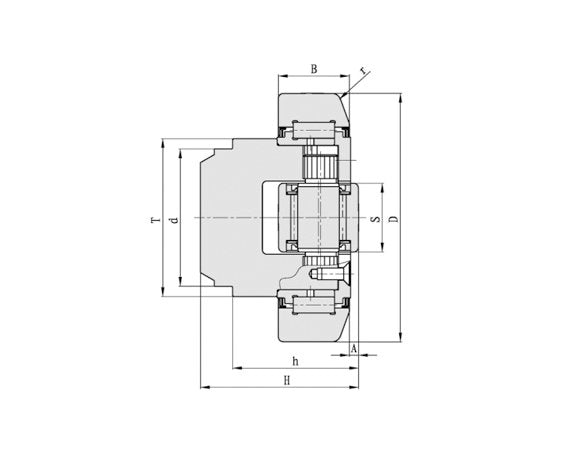

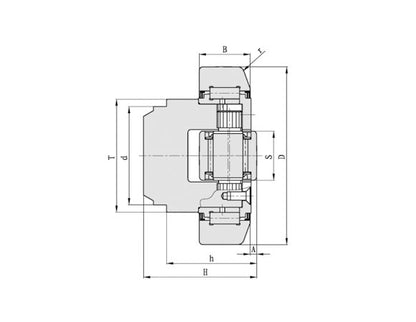

Specifications Bore Diameter

40 mm

Specifications Dimension A

3.5 to 5 mm

Specifications Dimension H

48 to 49.5 mm

Specifications Dimension R

4.5 mm

Specifications Dimension S

26 mm

Specifications Dimension T

54 mm

Specifications Optional Outer Diameter

78.1 mm | 81.8 mm

Specifications Outside Diameter

77.7 mm

Specifications Overall Bearing Width

23 mm

Specifications Reference Code Germany

4.456

Specifications Reference Code Italy A

4.0456

Eccentric Adjustable Combined Roller Bearings
