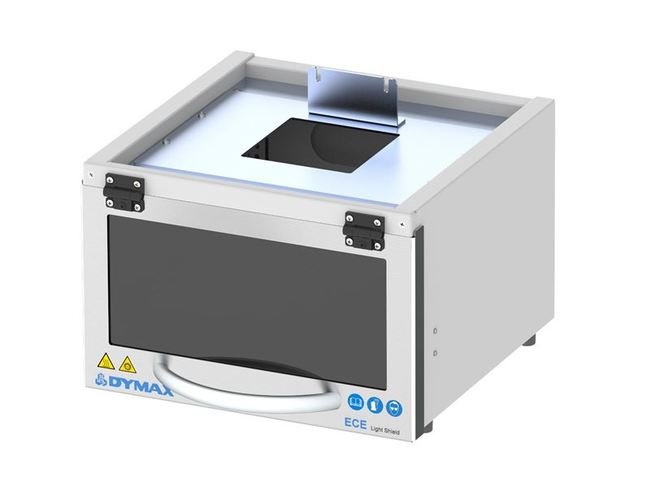

The ECE Flood Light Shield is specifically designed for Ultraviolet (UV) light-curing flood lamp systems. This shield provides 360-degree protection with a lifting door and sliding curing shelf for ease of use. It is compatible with Dymax® Shutters and offers adjustable heights to accommodate various work surface loads. The shield features an interlock switch for safety and a fireproof tray for added protection. With global certifications, this shield ensures quality and compliance in UV light-curing applications.
Product Specifications
Additional Information 0
The doors have an interlock switch that can be installed when being used with an electric ZIP⢠shutter and power supply to prevent the shutter from being open when the light shield door is open. The included fireproof tray slides along the adjustable height rails and can be removed and replaced with ease.
Features 0
Offers 360º protectionAdjustable heights
Inside Dimensions Inside Height
8.3 in | 21.1 cm
Inside Dimensions Inside Length
12.5 in | 31.8 cm
Inside Dimensions Inside Width
13.2 in | 35.5 cm
Overall Dimensions Overall Depth
18.2 in | 46.3 cm
Overall Dimensions Overall Height
10.6 in | 26.8 cm
Overall Dimensions Overall Width
15.1 in | 38.4 cm
Specifications Certifications
Global (CE Marked)
Specifications Compatible Dymax Bulbs
Optional - 400 Watt Hg Vapor Bulb | Optional - 400 Watt Visible Bulb | Standard - 400 Watt Metal Halide Bulb
Specifications Compatible Dymax Flood Lamps
ECE 2000 | ECE 5000
Specifications Door Operation Modes
Door Interlocked Option is Available with ZIP⢠Shutters only
Specifications Part Accommodation
0 to 7.5 in | 19.1 cm
Specifications Weight
12.8 lb | 5.8 kg
Specifications Work Area
10 x 10 in | 25.4 x 25.4 cm
Specifications Work Surface Adjustment From The Cover Of The Enc
1.5 to 5.5 in | 3.8 to 14 cm
Specifications Work Surface Load Capacity
0 to 5 lb
