Eco-Friendly Tan Paper Tapered Plug - 1/4 in
Eco-Friendly Tan Paper Tapered Plug - 1/4 in
SKU:TAP-a88e18
Sustainable Tan Paper Tapered Plug for precise masking up to 400°F, ideal for 1/4 in NPT threads. Eco-friendly & RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Eco-Friendly Tan Paper Tapered Plug - 1/4 in
$24.99
Quantity: 1
Claim Your Seller Account
Eco-Friendly Tan Paper Tapered Plug - 1/4 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

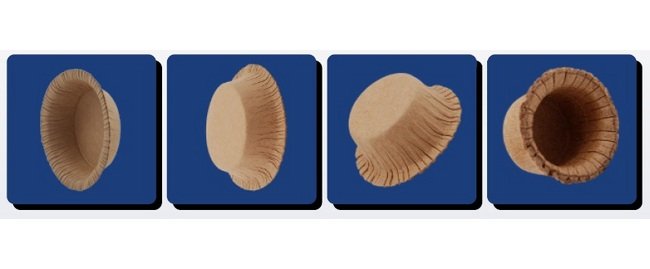

Discover our eco-friendly Tan Paper Tapered Plug designed for low-to-high temperature masking applications. These RoHS-compliant plugs are made of recyclable paper, withstanding up to 400 °F (204 °C). Their precise dimensions ensure a secure fit for 1/4 in female NPT threads, offering both environmental sustainability and efficient masking solutions for your industrial needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
18000
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
0.685 in | 17.4 mm
Specifications Large End Outer Diameter Dimension B
0.504 in | 12.8 mm
Specifications Length Dimension E
0.362 in | 9.2 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
0.461 in | 11.7 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
1/4 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
