Eco-Friendly Tan Paper Tapered Plug for 3 in Female NPT Threads
Eco-Friendly Tan Paper Tapered Plug for 3 in Female NPT Threads
SKU:TAP-5f2776
Eco-friendly paper plug for 3 in NPT threads, withstands up to 400°F, ideal for masking applications, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Eco-Friendly Tan Paper Tapered Plug for 3 in Female NPT Threads
$29.99
Quantity: 1
Claim Your Seller Account
Eco-Friendly Tan Paper Tapered Plug for 3 in Female NPT Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

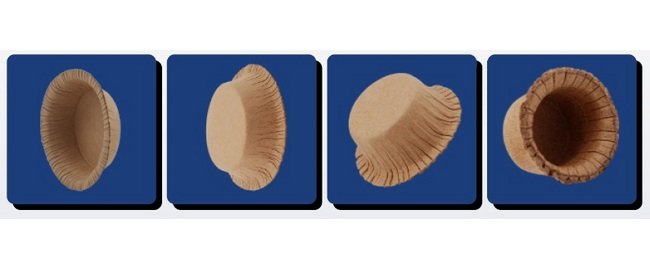

The Eco-Friendly Tan Paper Tapered Plug is a sustainable masking solution designed for temperatures up to 400 °F. Crafted from recyclable paper, these tapered plugs resist condensation and offer reliable masking for low-to-high temperature applications. Suitable for 1/8 to 3 in female NPT threads, this plug provides secure closure and is RoHS compliant.
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
1000
Specifications Color
Tan

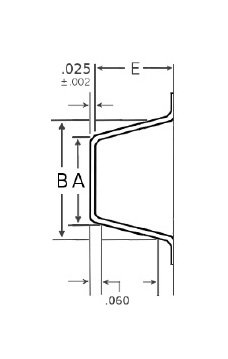

Specifications Flange Outer Diameter Dimension F
4.091 in | 103.9 mm
Specifications Large End Outer Diameter Dimension B
3.598 in | 91.4 mm
Specifications Length Dimension E
0.736 in | 18.7 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications Small End Outer Diameter Dimension A
3.276 in | 83.2 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
3 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
