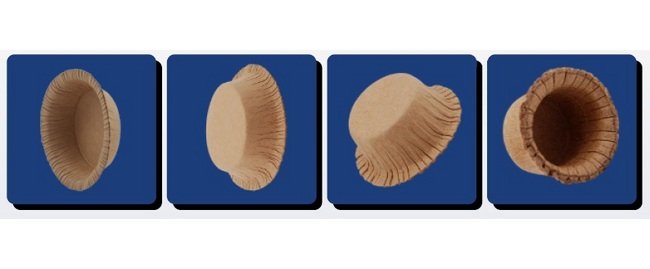

Eco-Friendly Tan Paper Tapered Plug for NPT Applications
Eco-Friendly Tan Paper Tapered Plug for NPT Applications
SKU:TAP-866d26
Eco-friendly Tan Paper Tapered Plugs, sustainable and heat-resistant up to 400°F. Ideal for NPT applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Eco-Friendly Tan Paper Tapered Plug for NPT Applications
$39.99
Quantity: 1
Claim Your Seller Account
Eco-Friendly Tan Paper Tapered Plug for NPT Applications
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Introducing our environmentally conscious Tan Paper Tapered Plugs, an ideal masking solution for various applications. Crafted from recyclable paper, these plugs resist temperatures up to 400 °F, ensuring reliable performance. With precise dimensions and RoHS compliance, these plugs offer sustainability without compromising quality. Whether for low or high temperatures, our MPTP series plugs provide a snug fit and prevent condensation, meeting the need for efficient masking solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
7200
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
1.181 in | 30.0 mm
Specifications Large End Outer Diameter Dimension B
0.878 in | 22.3 mm
Specifications Length Dimension E
0.583 in | 14.8 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
0.780 in | 19.8 mm
Specifications Standards
RoHS Compliant
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
