Eco-Friendly Tapered Paper Plug for NPT Masking
Eco-Friendly Tapered Paper Plug for NPT Masking
SKU:TAP-d1a76d
Eco-friendly Tan paper plugs for NPT masks, sustainable, heat-resistant up to 400°F, precise fit for 1/8 to 3 in NPTs
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Eco-Friendly Tapered Paper Plug for NPT Masking
$49.99
Quantity: 1
Claim Your Seller Account
Eco-Friendly Tapered Paper Plug for NPT Masking
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

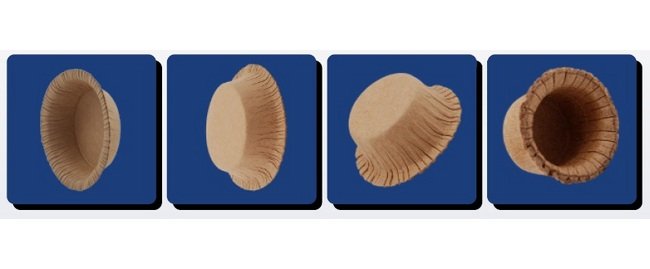

The MOCAP Tapered Paper Plugs offer a sustainable and cost-effective masking solution. Crafted from recyclable paper, these plugs resist condensation and can withstand temperatures up to 400°F. Designed with precision, the Tan paper plugs are ideal for NPT fittings ranging from 1/8 to 3 inches. With exacting tolerances, these plugs ensure a secure fit and reliable performance in various temperature applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
1200
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
2.921 in | 74.2 mm
Specifications Large End Outer Diameter Dimension B
2.299 in | 58.4 mm
Specifications Length Dimension E
1.028 in | 26.1 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
24
Specifications Mini Pack Quantity
240
Specifications Small End Outer Diameter Dimension A
1.976 in | 50.2 mm
Specifications Standards
RoHS Compliant
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
