Eco-Friendly Tapered Paper Plug for NPT Threads - Tan
Eco-Friendly Tapered Paper Plug for NPT Threads - Tan
SKU:TAP-d67294
Eco-friendly Tan paper plugs for NPT threads, withstands up to 400°F, RoHS compliant. Ideal for low-to-high temp masking applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Eco-Friendly Tapered Paper Plug for NPT Threads - Tan
$99.99
Quantity: 1
Claim Your Seller Account
Eco-Friendly Tapered Paper Plug for NPT Threads - Tan
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

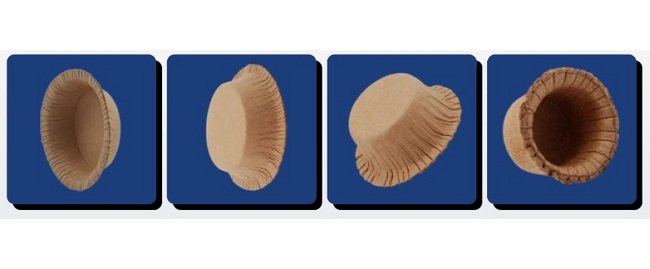

Introducing our environmentally-conscious and cost-effective Tapered Paper Plugs, ideal for masking applications in low-to-high temperature settings of up to 400°F (204°C). Crafted from recyclable paper that minimizes condensation risks, these Tan plugs are designed to fit 1/8 to 3 in female NPT threads. With precise dimensions and RoHS compliance, these plugs offer reliable performance with minimal dimensional variations. Stocked in bulk quantities, they cater to industrial needs efficiently.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
10500
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
1.035 in | 26.3 mm
Specifications Large End Outer Diameter Dimension B
0.819 in | 20.8 mm
Specifications Length Dimension E
0.532 in | 13.5 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
0.677 in | 17.2 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
1/2 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
