The ECO60 Electric Linear Actuator, part of the ECO60™ product line, is a durable US-made actuator designed for smooth and economical linear motion. Featuring a compact design with sliding element linear bearings and hardcoat aluminum shafting to Mil standard, it offers a 12-inch travel length and a 0.200-inch stainless steel screw lead. The billet aluminum carriage is fully adjustable and pre-loadable for optimal performance in harsh or wet conditions. With easy maintenance and adaptable features, the ECO60 Electric Linear Actuator delivers reliable and efficient linear actuation for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

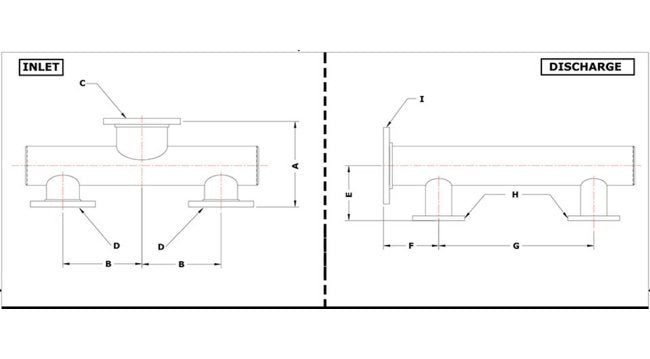

Dimension Discharge Flange Size H
8 x 13-1/2 in
Dimension Discharge Flange Size I
12 x 19 in | 300 x 445 mm
Dimension Discharge Size E
13 in | 330 mm
Dimension Discharge Size F
8-1/2 in | 216 mm
Dimension Discharge Size G
58-3/4 in
Dimension Inlet Flange Size C
14 x 21 in | 350 x 505 mm
Dimension Inlet Flange Size D
10 x 16 in
Dimension Inlet Size A
30-1/8 in | 765 mm
Dimension Inlet Size B
29-3/8 in | 746 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineAll Flanges Flat Faced with ANSI Bolt PatternProcess Connection Flanges Flat Faced with DIN Bolt PatternManifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
304 Cast Stainless Steel (SS)
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
3,790 kg | 8,350 lb
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
115 to 150 L/min | 30 to 40 g/min
Specifications Number Of Pump Inlet Flange Connections
2
Specifications Number Of Pump Outlet Flange Connections
2
Specifications Pump Inlet Flange Connection Size
250 mm | 10 in
Specifications Pump Outlet Flange Connection Size
200 mm | 8 in
Specifications Sealing Liquid Connection Size
1-1/2 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
127.0 mm | 5 in
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
