Econo-Master Mobile Hydraulic Floor Cranes
Econo-Master Mobile Hydraulic Floor Cranes
SKU:ECO-5ec212
High-quality, cost-effective mobile hydraulic floor cranes for efficient lifting. Versatile and durable for various applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Econo-Master Mobile Hydraulic Floor Cranes
$1,299.99
Quantity: 1
Claim Your Seller Account
Econo-Master Mobile Hydraulic Floor Cranes
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

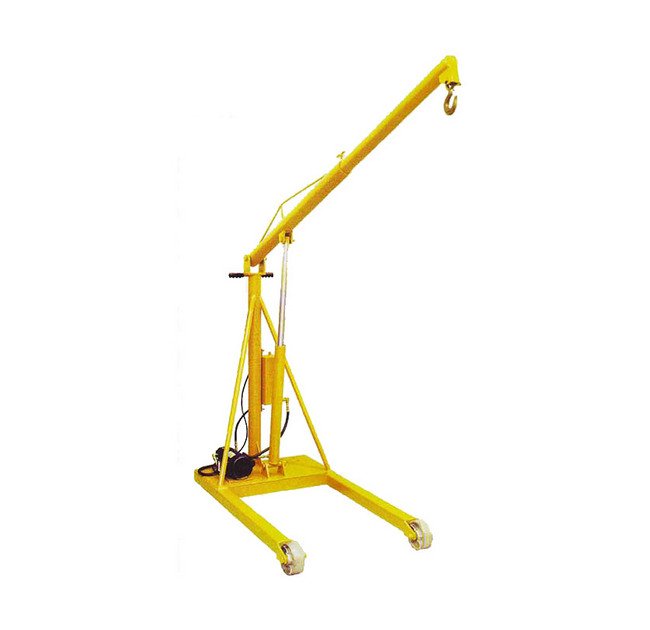

The Econo-Master Mobile Hydraulic Floor Cranes are designed for value-minded users seeking quality at a competitive price point. With capacities ranging from 2,000 to 6,000 lbs and lift heights up to 10.5 ft, these cranes offer remarkable cost efficiency without compromising on essential features. The narrow width of 34 in enhances mobility, allowing easy passage through doorways and efficient maneuvering in tight spaces. Built with a heavy-duty lifting cylinder and high-quality materials, these cranes prioritize safety, durability, and ease of operation. Optional powered lifting cylinders in various configurations provide added versatility and convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Description General Description
Designed and built for safety and durability. Heavy-duty lifting cylinder; built with quality materials and workmanship. Manual hand-pump hydraulic operation is standard.Wheels provide needed mobility. Two swivel casters and two rigid wheels on all models. The EM-6000 includes pivoting towing/steering handle that folds against mast when not in use.Telescopic boom for maximum usage provides extra reach when needed (at somewhat reduced lifting capacity).Optional powered lifting cylinder available in 12 volt DC battery, 110 volt A/C or air powered.
Note Note

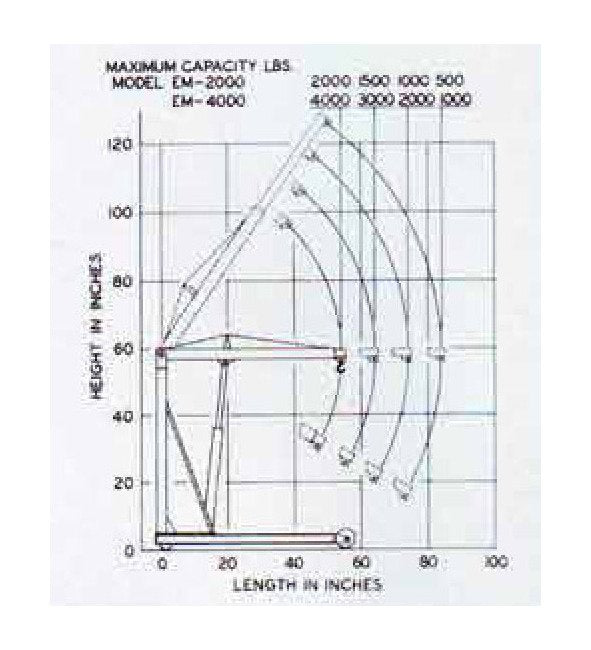

Specifications are for standard manual units.Counterweights of approximately 200 lbs.(EM-2000), 400 lbs.(EM-4000), or 600 lbs.(EM-6000) should be added and fastened securely to the base when loaded to the maximum capacities at the boom lengths shown in the chart. Counterweights not included.
Specifications Adjustable Boom Length
54 in | 64 in | 74 in | 84 in
Specifications Approx Shipping Weight
250 lb
Specifications Capacity Boom Extended
500 lb
Specifications Capacity Boom Retracted
2000 lb
Specifications Casters Rigid Two
6 x 2
Specifications Casters Swivel Two
4 x 1.5
Specifications Floor To Hook Height Boom Extended
24 in
Specifications Floor To Hook Height Boom Retracted
36 in
Specifications Mast Height
60 in
Specifications Maximum Lift Height Boom Extended
10.5 ft
Specifications Maximum Lift Height Boom Retracted
8 ft
Specifications Maximum Reach
60 in
Specifications Maximum Reach Beyond Wheels
24 in
Specifications Options
EM-AP-2 - Air Operated Powered Lifting Cylinder | EM-BLD-1 - Manual (Free rotation) Barrel Lifter / Dumper | EM-BLD-2 - Handcrank Barrel Lifter / Dumper | EM-BLD-3 - 110-VAC w/remote control Barrel Lifter / Dumper | EM-PB-2 - Battery Operated Powered Lifting Cylinder | EM-PE-2 - 110-VAC Operated Powered Lifting Cylinder

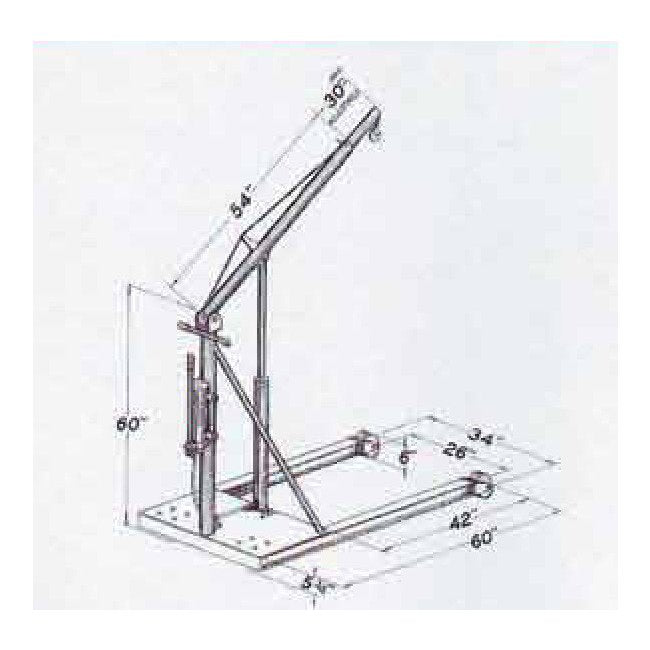

Specifications Overall Length
60 in
Specifications Overall Width
34 in
Specifications Width Inside Wheelbase
26 in
