Econo-Master Mobile Hydraulic Floor Cranes - Heavy-Duty Lifting Solution
Econo-Master Mobile Hydraulic Floor Cranes - Heavy-Duty Lifting Solution
SKU:ECO-4e60c7
Cost-effective, sturdy hydraulic floor cranes for heavy lifting jobs.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Econo-Master Mobile Hydraulic Floor Cranes - Heavy-Duty Lifting Solution
$1,999.99
Quantity: 1
Claim Your Seller Account
Econo-Master Mobile Hydraulic Floor Cranes - Heavy-Duty Lifting Solution
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

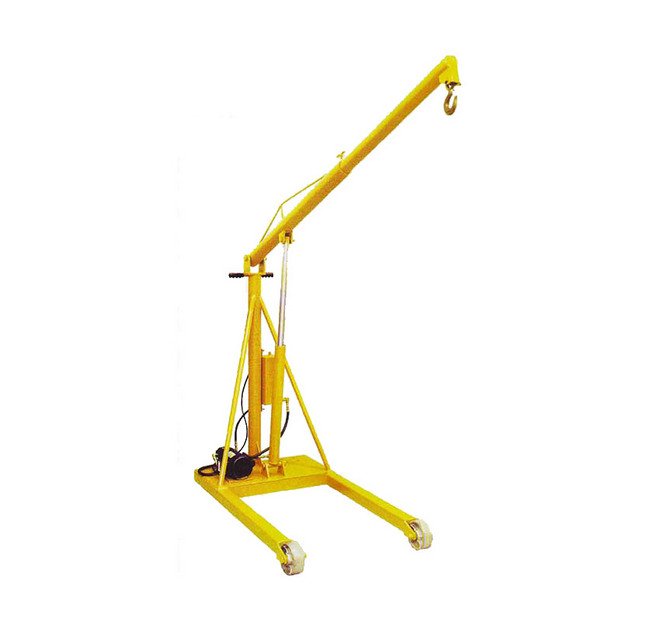

The Econo-Master Mobile Hydraulic Floor Cranes offer a perfect balance of cost-efficiency and functionality. With capacities ranging from 2,000 to 6,000 lbs and lift heights up to 10.5 ft, these cranes are designed for safety and durability. Featuring a narrow width for enhanced mobility, telescopic boom for extended reach, and optional powered lifting cylinders, these cranes provide unmatched value and versatility. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, these cranes are ideal for institutional use.
Product Specifications
General Description General Description
Designed and built for safety and durability. Heavy-duty lifting cylinder; built with quality materials and workmanship. Manual hand-pump hydraulic operation is standard.Wheels provide needed mobility. Two swivel casters and two rigid wheels on all models. The EM-6000 includes pivoting towing/steering handle that folds against mast when not in use.Telescopic boom for maximum usage provides extra reach when needed (at somewhat reduced lifting capacity).Optional powered lifting cylinder available in 12 volt DC battery, 110 volt A/C or air powered.
Note Note

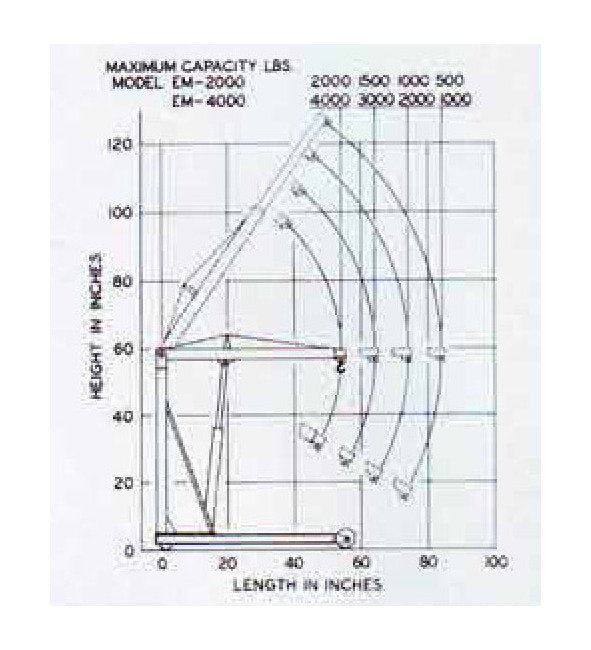

Specifications are for standard manual units.Counterweights of approximately 200 lbs.(EM-2000), 400 lbs.(EM-4000), or 600 lbs.(EM-6000) should be added and fastened securely to the base when loaded to the maximum capacities at the boom lengths shown in the chart. Counterweights not included.

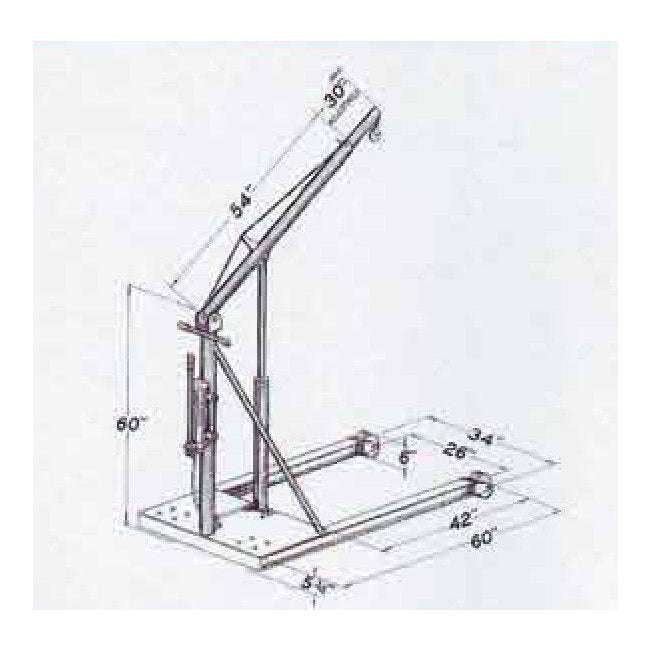

Specifications Adjustable Boom Length
54 in | 64 in | 74 in | 84 in | 94 in
Specifications Approx Shipping Weight
350 lb
Specifications Capacity Boom Extended
1500 lb
Specifications Capacity Boom Retracted
6000 lb
Specifications Casters Rigid Two
8 x 2.5
Specifications Casters Swivel Two
6 x 2
Specifications Floor To Hook Height Boom Extended
18 in
Specifications Floor To Hook Height Boom Retracted
34 in
Specifications Mast Height
68 in
Specifications Maximum Lift Height Boom Extended
10.5 ft
Specifications Maximum Lift Height Boom Retracted
8 ft
Specifications Maximum Reach
74 in
Specifications Maximum Reach Beyond Wheels
24 in
Specifications Options
EM-AP-6 - Air Operated Powered Lifting Cylinder | EM-BLD-1 - Manual (Free rotation) Barrel Lifter / Dumper | EM-BLD-2 - Handcrank Barrel Lifter / Dumper | EM-BLD-3 - 110-VAC w/remote control Barrel Lifter / Dumper | EM-PB-6 - Battery Operated Powered Lifting Cylinder | EM-PE-6 - 110-VAC Operated Powered Lifting Cylinder
Specifications Overall Length
64 in
Specifications Overall Width
34 in
Specifications Width Inside Wheelbase
25 in
