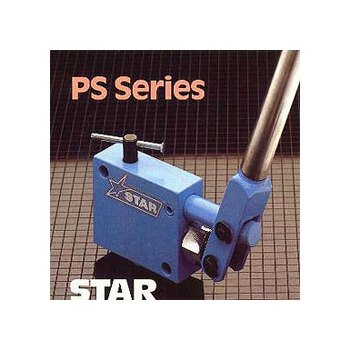

Economical Hand Operated Hydraulic Pump - PS Series
Economical Hand Operated Hydraulic Pump - PS Series
SKU:HYD-a14e30
Reliable PS Series hydraulic pump with manual pressure release valve, compact size, durable steel body, and maximum 5000 PSI pressure rating for versatile applications.
Regular price
$268.00
Regular price
Sale price
$268.00
Unit price
per
Initiate Order
Economical Hand Operated Hydraulic Pump - PS Series
$268.00
Quantity: 1
Claim Your Seller Account
Economical Hand Operated Hydraulic Pump - PS Series
$268.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PS Series Hand Operated Hydraulic Pump is a reliable and cost-effective solution for both consumer and institutional buyers. Crafted with high-quality components, this pump offers the flexibility of manual pressure release valve options. Its compact size, steel pump body, and hard chrome plated piston ensure durability and efficient operation. With a maximum pressure rating of 5000 PSI, this pump includes a 24" lever for ease of use. Ideal for various applications, the PS Series pump is a budget-friendly and dependable choice.
Product Specifications
Specifications Adjustable Overload Relief Valve
No
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
1/4
Specifications Lever Load Per 1000 Psi
19.0 lb
Specifications List Price
268 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
6 lb
Specifications Oil Reservoir
false
Specifications Outlet Port Size Nptf
1/4
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
5/8 in
Specifications Series
PS
Specifications Volume Per Stroke
0.30 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
