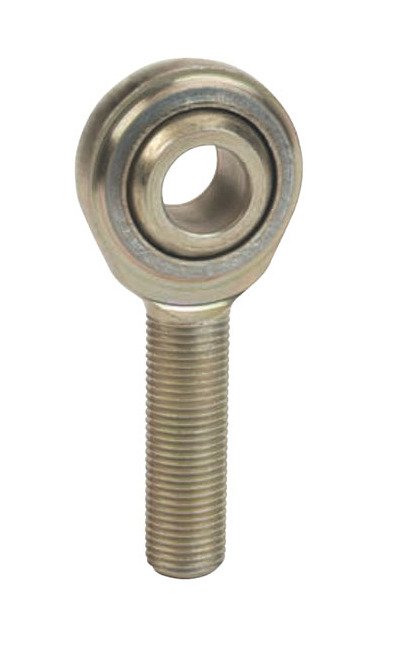

Economical Metal to Metal Rod End - 2-Piece RH EM/EF Rod Ends

Name: Economical Metal to Metal Rod End - 2-Piece RH EM/EF Rod Ends
Brand: Lexco Cable Manufacturing
SKU: PUS-ce2d46
Price: 24.99 USD
Availability: OutOfStock

SKU:PUS-ce2d46

Commercial 2-Piece RH EM/EF Rod Ends for reliable mechanical motion transfer. Low carbon steel, zinc-plated, and yellow dichromate treated. Suitable for various applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RH EM/EF Rod Ends are commercial-grade 2-Piece rod ends designed for superior performance in mechanical motion transfer applications. Constructed with low carbon steel, zinc-plated and yellow dichromate treated, these rod ends offer exceptional durability and corrosion resistance. With a 0.3750" Ball Bore, 5520 lb Ultimate Radial Static Load Capacity, and a temperature range of -65 to 250 Â°F, they excel in various environments. Ideal for construction equipment, lawn, garden, and truck/bus applications, these rod ends provide cost-effective reliability for your projects. Compliant with SAE spec J1120.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

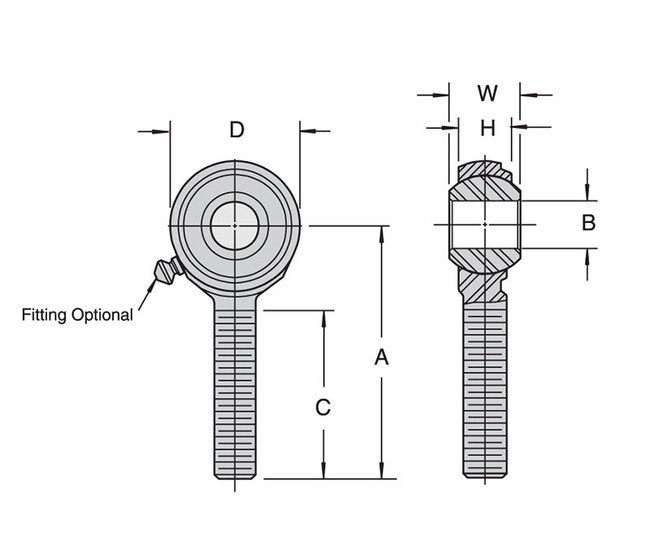

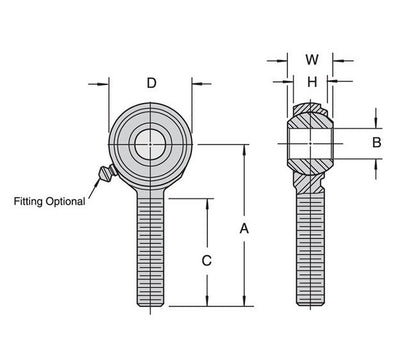

Specifications Ball Bore B 00020 00000

0.3750 "

Specifications Ball Diameter Ref

0.719 "

Specifications Ball Width W 0005

0.500 "

Specifications Centerline Length A 0015

1.937 "

Specifications Head Diameter D 0015

1.000 "

Specifications Housing Width H Ref

0.406 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.250 "

Specifications Thread Size Unf 2a

3/8-24 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

5520 lb

Specifications Weight

0.110 lb

Studded Dimensions L Ref

0.625 "

Studded Dimensions Min Thread Length S

0.781 "

Studded Dimensions P 0030

0.875 "

Studded Dimensions Rod End Bore Size

3/8 "

Studded Dimensions Thread Size N Unf 2a

3/8-24 "

CAGE

0T9L4

NAICS

332510

PSC

4030
