Economical Metal-to-Metal Rod End - Female RH Series

Economical Metal-to-Metal Rod End - Female RH Series

PUS-ac6bf0

Commercial-grade 2-piece metal-to-metal rod ends for robust mechanical motion applications. High axial load capacity, temperature range -65 to 250 ºF, compliant with SAE spec J1120.

$24.99
$24.99
Sale

Initiate Order

Economical Metal-to-Metal Rod End - Female RH Series

Economical Metal-to-Metal Rod End - Female RH Series

$24.99

Quantity: 1

Claim Your Seller Account

Economical Metal-to-Metal Rod End - Female RH Series

Economical Metal-to-Metal Rod End - Female RH Series

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

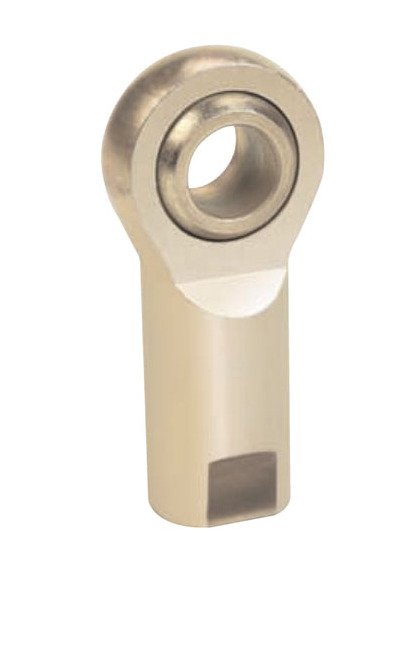

The RH EM/EF Rod Ends are commercial-grade, 2-piece units designed for robust mechanical motion transfer applications. With a low carbon steel construction, zinc-plated and yellow dichromate treated for durability, these rod ends offer high axial load capacity and exceptional side loading strength. Suitable for various industries including construction, lawn and garden, and truck/bus, these rod ends operate efficiently in temperatures ranging from -65 to 250 ºF. Compliant with SAE spec J1120, these rod ends provide a cost-effective solution for applications requiring reliable performance under demanding conditions.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

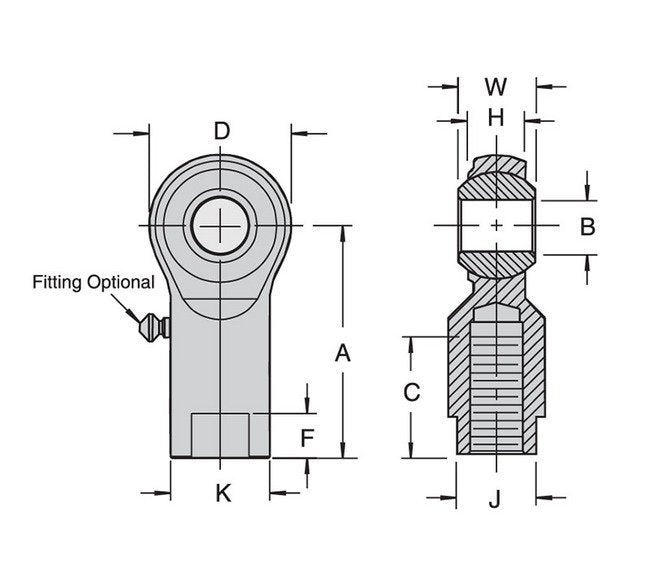

Specifications Ball Bore B 00020 00000
0.3125 "
Specifications Ball Diameter Ref
0.500 "
Specifications Ball Width W 0005
0.437 "
Specifications Centerline Length A 0015
1.375 "
Specifications Head Diameter D 0015
0.875 "
Specifications Housing Width H Ref
0.344 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.500 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.687 "
Specifications Thread Size Unf 2b
5/16-24 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
4680 lb
Specifications Weight
0.081 lb
Specifications Wrench Flat Length F 0030
0.281 "
Specifications Wrench Flat Width J 0015
0.437 "
Studded Dimensions L Ref
0.531 "
Studded Dimensions Min Thread Length S
0.594 "
Studded Dimensions P 0030
0.688 "
Studded Dimensions Rod End Bore Size
5/16 "
Studded Dimensions Thread Size N Unf 2a
5/16-24 "
CAGE
0T9L4
NAICS
332510
PSC
4030
