Economical Metal to Metal Rod Ends - EM/EF Series

Economical Metal to Metal Rod Ends - EM/EF Series

PUS-b7e4fb

Cost-effective metal to metal rod ends for high axial load applications. Versatile and reliable design meeting SAE spec J1120.

$29.99
$29.99
Sale

Initiate Order

Economical Metal to Metal Rod Ends - EM/EF Series

Economical Metal to Metal Rod Ends - EM/EF Series

$29.99

Quantity: 1

Claim Your Seller Account

Economical Metal to Metal Rod Ends - EM/EF Series

Economical Metal to Metal Rod Ends - EM/EF Series

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

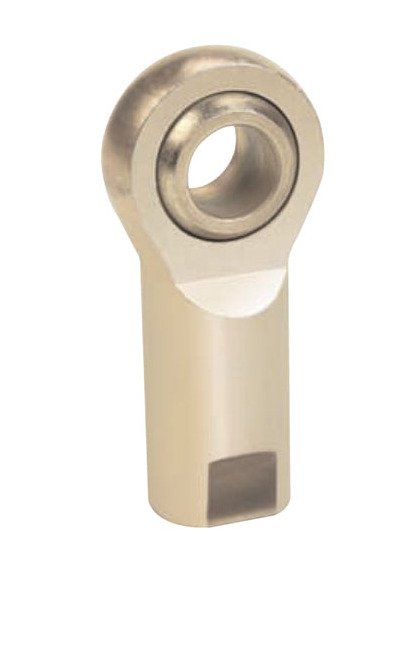

The EM/EF Rod Ends in the RH product line are ideal for various mechanical motion transfer applications in industries such as construction, lawn and garden, and transportation. This 2-piece metal to metal design ensures cost-effectiveness without compromising on performance. With a ball bore diameter of 0.5000", these rod ends offer high axial load capacity crucial for applications requiring strength against side loading. Operating smoothly in temperatures ranging from -65 to 250 ºF, these rod ends are versatile and reliable. Meeting SAE spec J1120, these rod ends can be customized to specific assembly requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

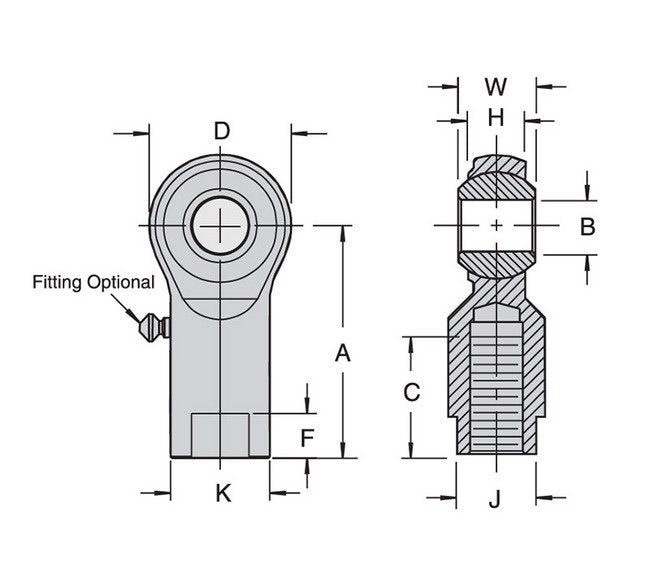

Specifications Ball Bore B 00020 00000
0.5000 "
Specifications Ball Diameter Ref
0.875 "
Specifications Ball Width W 0005
0.625 "
Specifications Centerline Length A 0015
2.125 "
Specifications Head Diameter D 0015
1.312 "
Specifications Housing Width H Ref
0.500 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.875 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
1.187 "
Specifications Thread Size Unf 2b
1/2-20 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
9460 lb
Specifications Weight
0.324 lb
Specifications Wrench Flat Length F 0030
0.375 "
Specifications Wrench Flat Width J 0015
0.750 "
Studded Dimensions L Ref
0.875 "
Studded Dimensions Min Thread Length S
1.000 "
Studded Dimensions P 0030
1.125 "
Studded Dimensions Rod End Bore Size
1/2 "
Studded Dimensions Thread Size N Unf 2a
1/2-20 "
