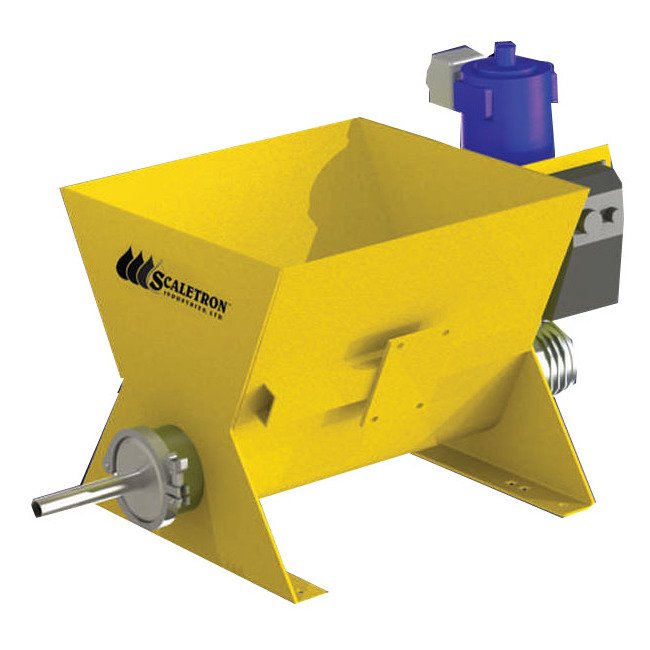

The Economical Volumetric Screw Feeder VMF-90C by Scaletron™ is a reliable solution for automatic metering of powdered or pelletized materials in water, wastewater, and chemical processing applications. This feeder features a sturdy carbon steel construction with a corrosion-resistant zinc oxide primed, dry powder epoxy coating. With a built-in hopper capacity of 1.5 cu. ft. and an accuracy rate of within 1.0% of volume, this feeder ensures precise dispensing. Equipped with a heavy-duty, gear-driven auger metering mechanism and controls housed in a water and dust-proof stainless enclosure, the VMF-90C is designed for efficiency and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Chemicals Chemicals
Feeder and scale are designed to accurately dispense:Aluminum sulfate (alum), calcium hydroxide (hydrated lime), carbon, ferric and ferrous sulfate, magnesium hydroxide, polymers, potassium, soda ash, sodium sulfite and thiosulfate, and other dry powders or pelletized materials
Options Options
All 304 stainless steel constructionElectric vibratory agitatorRemovable lids (carbon steel or 304 stainless)Feeder stand
Power Alternating Current Ac Voltage
115 V | 230 V
Power Current
4 A
Power Frequency
50 Hz | 60 Hz
Specifications Accuracy
1% of volume
Specifications Ambient Temperature Limit
10 to 40 ºC
Specifications Available Motors
None
Specifications Construction
Carbon steel with corrosion resistant zinc oxide primed, dry powder epoxy coating - 304 stainless steel optional
Specifications Controls
Adjustable, SCR motor controller in water and dust proof NEMA 4X stainless enclosure
Specifications Control Input Current
4 to 20 mA
Specifications Direct Current Dc Voltage
90 V
Specifications Feed Rate Per Hour
0.13 to 1.27 ft³
Specifications Feed Screw
3/4" diameter open helix feed screw in 304 stainless steel
Specifications Hopper Capacity
1.5 ft³
Specifications Industry Standards
European Conformity (CE)
Specifications Motor Type
Right-angle geared, TENV 90 VDC, Washguard® motor 1/3 HP, 83 RPM
Specifications Note
Unless Otherwise Specified Dimension Will Change Depending Upon Application
Specifications Overwind Helix
Concentric overwind material conditioning auger in 304 stainless steel
Specifications Vibratory Agitator Optional
None (Electric is optional)
Specifications Warranty
2 Year Full Warranty on All Feeders
Standard Features Standard Features
Built-in 1.5 cu. ft. gravity fed hopper with maintenance access hatch and integrated load cell attachment pointStainless steel 3/4" diameter open helix feed screwStandard concentric material conditioning overwind augerStandard vibratory agitator mounting bracketAdjustable, SCR motor controller in water and dust proof NEMA 4X stainless enclosure90 VDC right-angle geared, wash down motor
Specifications Specifications
The Economical Volumetric Screw Feeder must be constructed of rugged, carbon steel with a corrosion resistant zinc oxide primed, dry powder epoxy coating. The feeder shall include a heavy-duty, gear driven auger metering mechanism with a stainless steel auger, concentric helical overwind auger and built-in gravity fed hopper. All hardware shall be stainless steel. An adjustable, SCR motor controller must be housed in a water and dust proof NEMA 4X, UL approved enclosure. Auger shall be powered by a 1/3 HP DC motor and have mounting bracket for vibratory agitator/material conditioner.Feeder shall be a Model VMF-90C⢠as manufactured by Scaletron⢠Industries Ltd., Plumsteadville, PA.
