EcoShield 4042WB-26⢠Containment Drum Scales with Expandable Bladder
EcoShield 4042WB-26⢠Containment Drum Scales with Expandable Bladder
SKU:SPI-66680a
Meet EPA & OSHA standards with the EcoShield Drum Scales - corrosion-resistant, efficient, and reliable for stringent compliance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
EcoShield 4042WB-26⢠Containment Drum Scales with Expandable Bladder
$1,899.99
Quantity: 1
Claim Your Seller Account
EcoShield 4042WB-26⢠Containment Drum Scales with Expandable Bladder
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

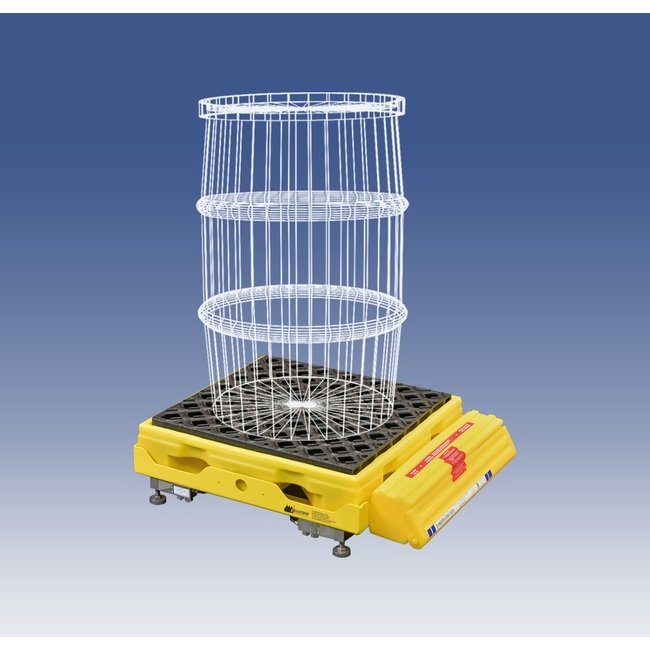

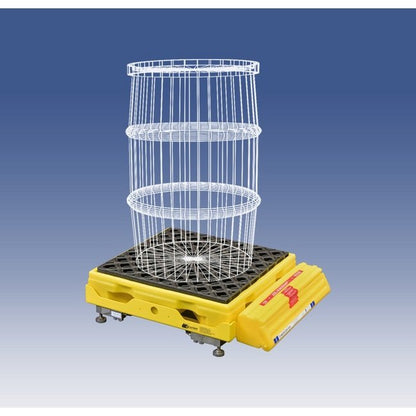

The EcoShield 4042WB-26â„¢ Spill Containment Drum Scales with Bladder sets the standard for corrosion resistance and efficient spill containment. Designed for weighing tanks and drums up to 26" in diameter, this scale features a four-load cell design ideal for frequent on/off loading. It meets EPA and OSHA requirements, making it a reliable choice for industries with stringent compliance needs. With a robust construction, expandable bladder, and precise weighing properties, it offers a comprehensive solution for managing hazardous materials and preventing environmental contamination.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Accurately weighs the net remaining chemical that has NOT been dispensed into water treatment system including splashes and small spills that are contained within basinStandard base size: 26" x 26" (with bladder) - other sizes availableHigh accuracy of ±0.1%Single or multi-channel controllers with easy readability to 0.1 lb. (kg)

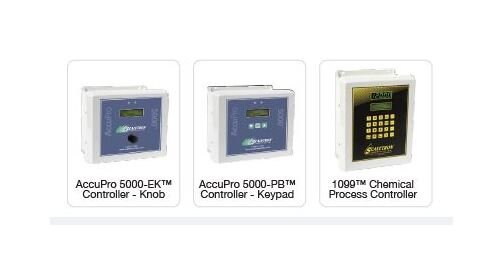

Available Controllers Available Controllers
AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal - scale or loop poweredModel 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal - scale or loop powered
Chemicals Chemicals
Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
Digital Controllers Digital Controllers
Part Number - ACCUPRO 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - ACCUPRO 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - 1099 C.P.C.Interface - 20 Button keypadAccuracy - ±0.1% to 0.25% of full scale capacityDisplay - 6 Digit LED and alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - Up to 44-20 mA - Standard on channel 1 - Loop powered (available for channels 2 thru 4)Set Points - 1 to 4 (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Optional piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 9 lbs.
Note Note
Patented - Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet away
Scale Base Containment Capacity
11 to 77 gal

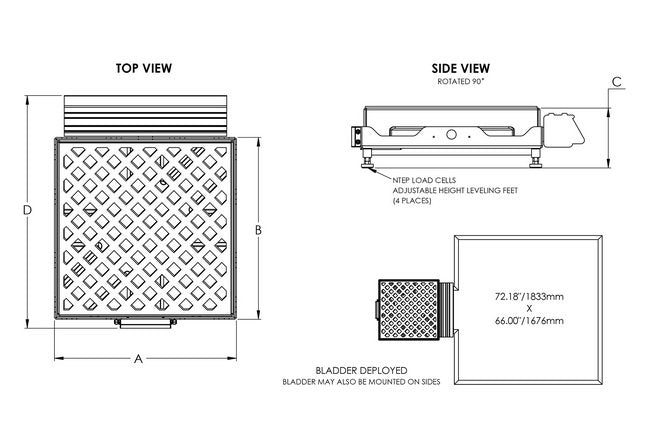

Scale Base Dimension D
34.375 in | 873 mm
Scale Base Net Capacity
454 kg | 0 to 1000 lb
Scale Base Platform Height C
8.84 in | 224 mm
Scale Base Platform Length A
26.875 in | 683 mm
Scale Base Platform Width B
26.875 in | 683 mm
Scale Base Weight
96 lb
Specifications Accuracy
0.1 %
Specifications Base Length
26 in
Specifications Base Width
26 in
Specifications Cable Length
20 ft
Specifications Diameter
Up to 26 in
Specifications Display Type
Liquid Crystal Display (LCD)
Specifications Industry Standards
Environmental Protection Agency (EPA) | Occupational Safety and Health Administration (OSHA)
Specifications Number Of Conductors
4
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Specifications Warranty
5 Years Full Warranty on All Products!
Specifications Weighing Properties Readout
Gallons (g) | Kilograms (kg) | Liters (L) | Pounds (lb)
Standard Features Standard Features
Rugged steel construction protected by corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with polyethylene containment basin for use in harsh environmentsAccommodates off-center loads - drums can be placed anywhere on the containment platform and do not need to be leveledExpandable bladder automatically deploys in the event of a major spill(4) NTEP stainless steel shear beam, temperature compensated load cellsLoad cells are mounted outside of spill containment basin to eliminate damage due to chemical spillsAll hardware is stainless steel to prevent corrosionElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids20 ft. of 4 conductor wire cable
