ECV Flangeless Wafer Check Valve
ECV Flangeless Wafer Check Valve
SKU:VAL-c8032c
Reliable ECV Check Valve with precise shut off pressure for backflow prevention. Durable construction with tight shut off capabilities.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
ECV Flangeless Wafer Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
ECV Flangeless Wafer Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

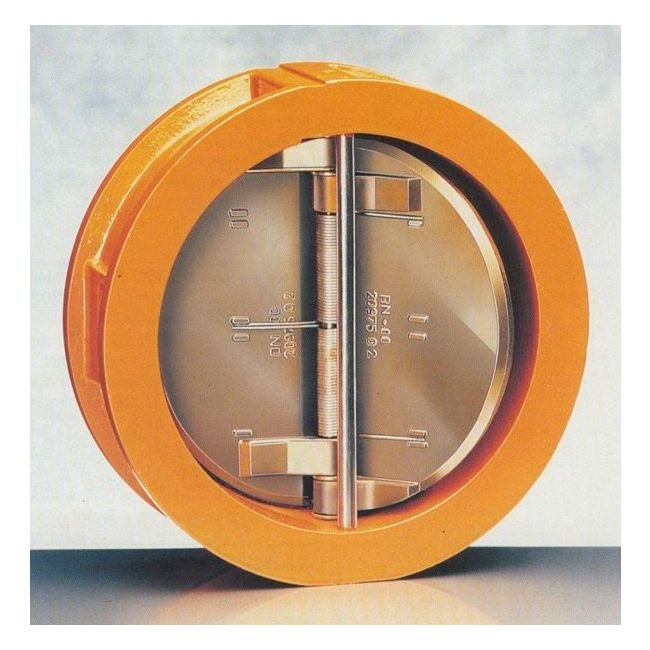

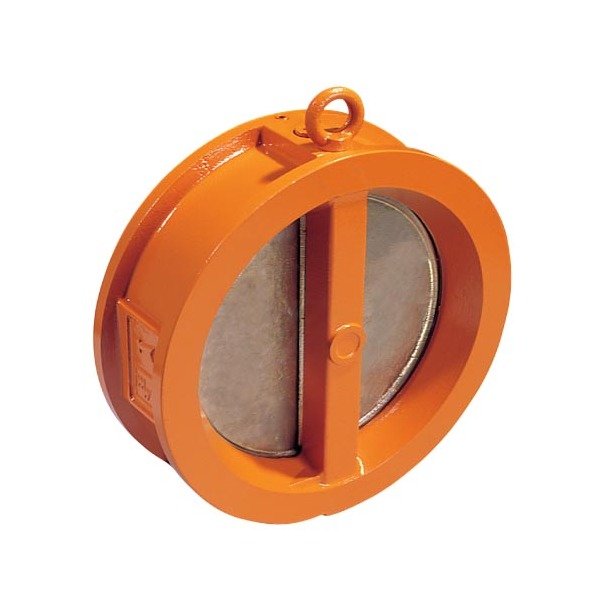

The ECV Flangeless Wafer Check Valve offers seamless backflow prevention with its robust construction and precise shut off pressure capabilities ranging from 0.2 to 16 bar. Constructed with GGG40 Ductile Iron and Aluminum Bronze materials, this valve ensures durability and reliability. Compliant with ISO 5208 leakage rate standards, this valve guarantees uni-directional tight shut off, meeting the stringent requirements of institutional and government buyers.
Product Specifications

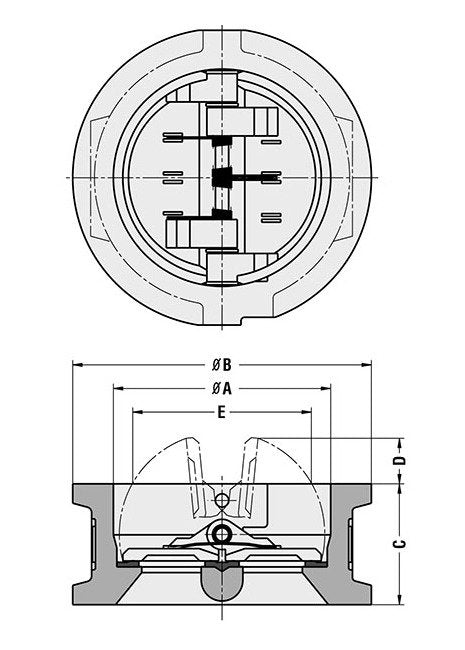

Specifications A
67 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
100 mm
Specifications C
43 mm
Specifications D
8 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
41 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN50 - 2"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
1.3 kg
