ECV Flangeless Wafer Check Valve - DN350 | 14"
ECV Flangeless Wafer Check Valve - DN350 | 14"
SKU:VAL-044b8b
Series ECV Flangeless Wafer Check Valve - Prevent backflow efficiently with our durable, ISO 5208 compliant valve.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
ECV Flangeless Wafer Check Valve - DN350 | 14"
$689.99
Quantity: 1
Claim Your Seller Account
ECV Flangeless Wafer Check Valve - DN350 | 14"
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series ECV Flangeless Wafer Check Valve is designed for efficient backflow prevention, with a durable body constructed from GGG40 Ductile Iron or Aluminum Bronze. It ensures tight shut off with valve shut off pressure ranging between 0.2-16 bar. This valve meets stringent ISO 5208 leakage rate standards and features corrosion-resistant materials for long-term performance.
Product Specifications

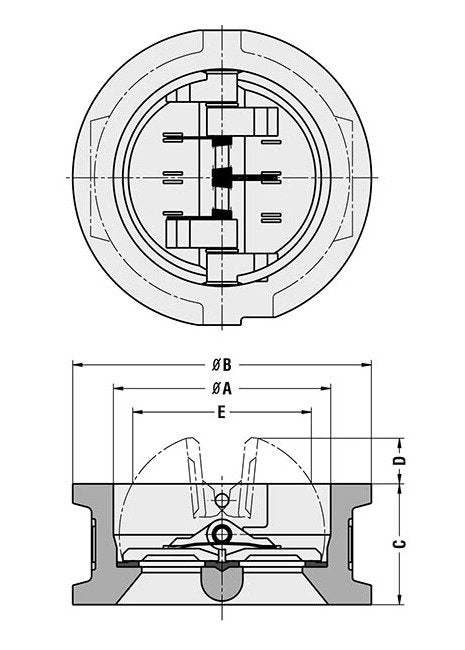

Specifications A
356 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
430 mm
Specifications C
127 mm
Specifications D
122 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
331 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN350 - 14"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
45.0 kg
