ECV Flangeless Wafer Check Valve DN500 - 20"
ECV Flangeless Wafer Check Valve DN500 - 20"
SKU:VAL-8e71dd
Efficient backflow prevention with Series ECV Flangeless Wafer Check Valve for industrial reliability. ISO 5208 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
ECV Flangeless Wafer Check Valve DN500 - 20"
$899.99
Quantity: 1
Claim Your Seller Account
ECV Flangeless Wafer Check Valve DN500 - 20"
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series ECV Flangeless Wafer Check Valve is designed for efficient backflow prevention with a flangeless body construction. Featuring a pressure shut off range between 0.2 to 16 bar, this valve ensures uni-directional tight shut off per ISO 5208 standards. Crafted with durable materials including Aluminum Bronze and GGG40 Ductile Iron, accompanied by a Stainless Steel shaft and NBR/EPDM liners, this valve guarantees long-term reliability in industrial applications. Compliant with ISO 5752 and EN 558 standards, it offers exceptional performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

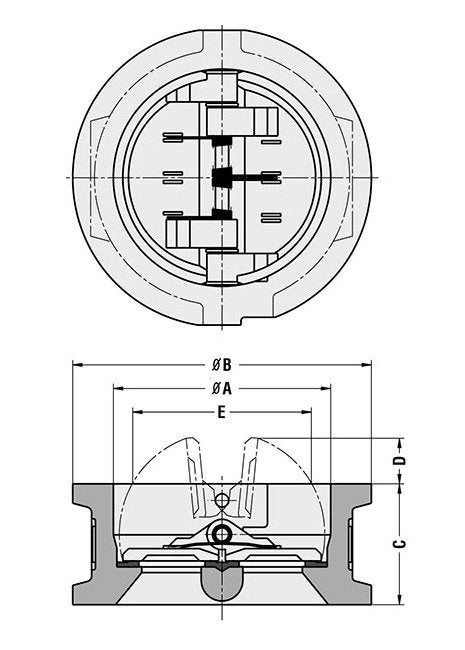

Specifications A
486 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
620 mm
Specifications C
152 mm
Specifications D
159 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
428 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN500 - 20"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
105.0 kg
