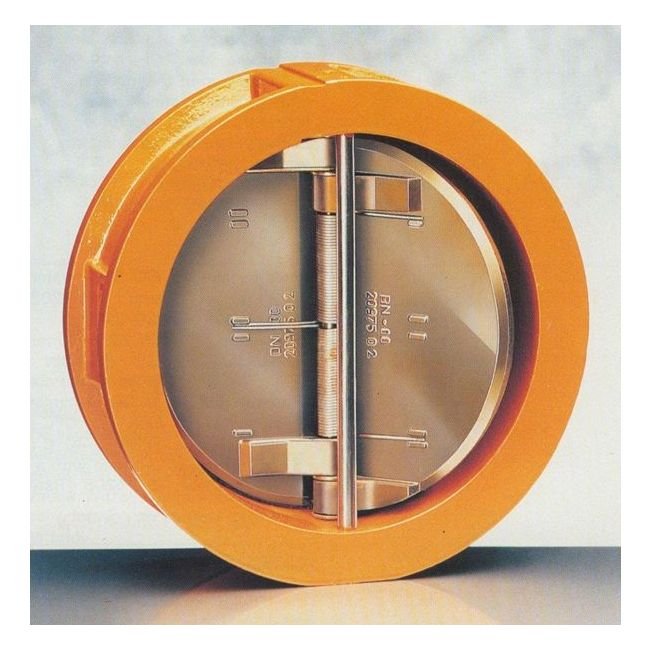

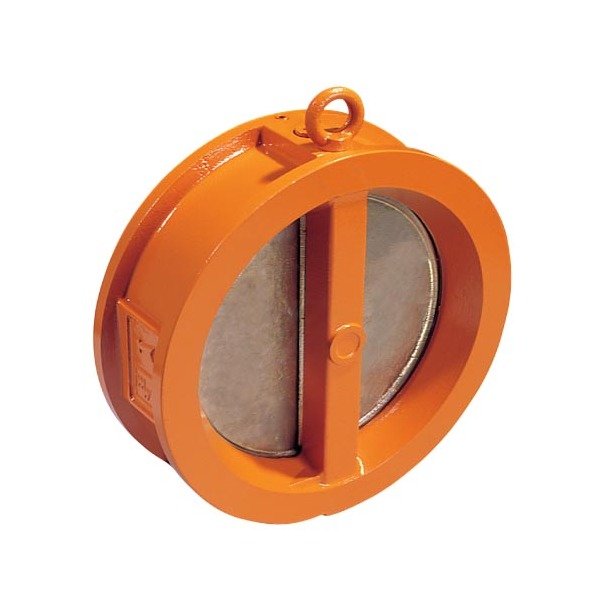

The Series ECV Flangeless Wafer Check Valve is engineered for optimal backflow prevention with a robust body design. Featuring a clamping installation system compatible with PN 10, PN 16, and ANSI Class 150 flange connections, this valve ensures tight shut off pressure levels ranging from 0.2 to 16 bar. Compliant with ISO 5208 leakage rate standards and available type approvals including GL and LRS, the valve boasts a body crafted from GGG40 Ductile Iron and Aluminum Bronze, a disc made of Aluminum Bronze, and a stainless steel shaft. The EPDM and NBR liners further enhance durability and performance.
Product Specifications

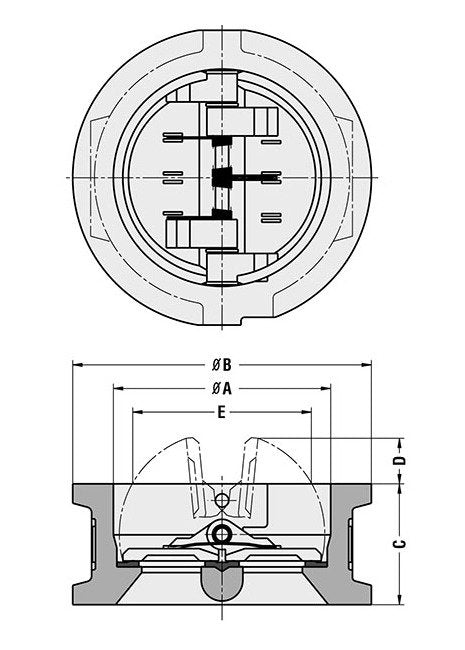

Specifications A
210 mm
Specifications Actuation Possibilities
Manual
Specifications Available Type Approvals
GL | LRS
Specifications Body Material
Aluminum Bronze | GGG40 Ductile Iron
Specifications B Diameter
268 mm
Specifications C
89 mm
Specifications D
61 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
185 mm
Specifications Flange Connections
ANSI Class 150 | PN 10 | PN 16
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN200 - 8"
Specifications Stem Material
Stainless Steel 1.4401
Specifications Valve Shut Off Pressure
0.2-16 bar
Specifications Weight
13.0 kg
