Edge Board Mount x .187 Chassis Hole Circuit Board Support
Edge Board Mount x .187 Chassis Hole Circuit Board Support
SKU:01C-7a5003
Secure and durable circuit board support with easy installation and RoHS compliance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Edge Board Mount x .187 Chassis Hole Circuit Board Support
$14.99
Quantity: 1
Claim Your Seller Account
Edge Board Mount x .187 Chassis Hole Circuit Board Support
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 03 Series Edge Board Mount x .187 Chassis Hole Circuit Board Support is a reliable solution for securing PC board edges effortlessly. Crafted from durable Nylon 66 UL94V-0 material, it ensures a secure lock, offering unmatched stability. With a temperature range of -40 to 185F, this support is ideal for various environments. Compliant with RoHS standards, ASTM D 4066, and PA111, this support guarantees safety and reliability for your circuit board installations.

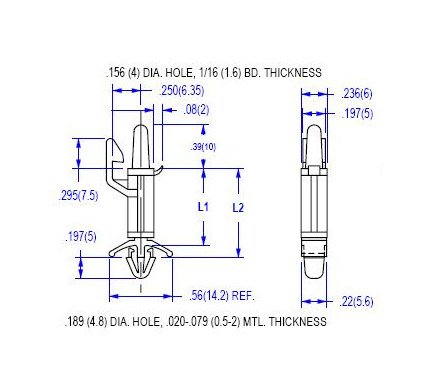

Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L1
.315 (8.0) inches (mm)
Specifications Dim L2
.406 (10.3) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
