Edge Milling Blank with Hole and Chamfers - 0.263/0.271 in
Edge Milling Blank with Hole and Chamfers - 0.263/0.271 in
SKU:MIL-cbea67
Precision Edge Milling Blank with Hole and Chamfers - Ideal for diverse industrial applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Edge Milling Blank with Hole and Chamfers - 0.263/0.271 in
$45.99
Quantity: 1
Claim Your Seller Account
Edge Milling Blank with Hole and Chamfers - 0.263/0.271 in
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

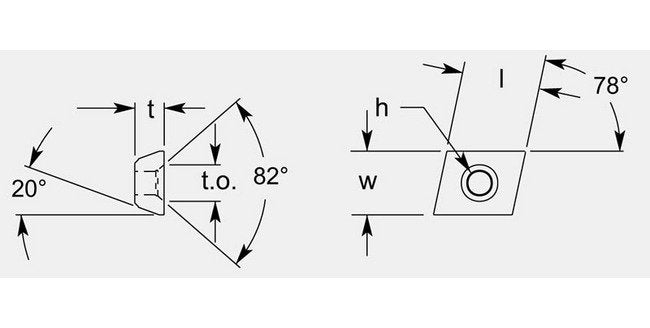

The Edge Milling Blank with Hole and Chamfers features a precise Thickness of 0.263/0.271 in, an Angle of 78°, Width of 0.578/0.586 in, and length options of 0.702/0.712 in. The integrated hole of 0.207/0.219 in and TO dimension of 0.331/0.337 in offer versatility for various applications. Grade availability is customizable upon request, ensuring compliance with stringent procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
78 º
Dimensional Specification Hole
0.207 / 0.219 in
Dimensional Specification L
0.702 / 0.712 in
Dimensional Specification Thickness T
0.263 / 0.271 in
Dimensional Specification To
0.331 / 0.337 in
Dimensional Specification Width W
0.578 / 0.586 in
Grade Availability Grade Availability
Available on Request
