Edge Mount Circuit Board Holder
Edge Mount Circuit Board Holder
SKU:01C-6f7d0c
Securely mount edge circuit boards with the 25 Series Holder. Durable Nylon 66 UL94V-2 construction, precise dimensions, and ASTM compliance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Edge Mount Circuit Board Holder
$12.99
Quantity: 1
Claim Your Seller Account
Edge Mount Circuit Board Holder
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

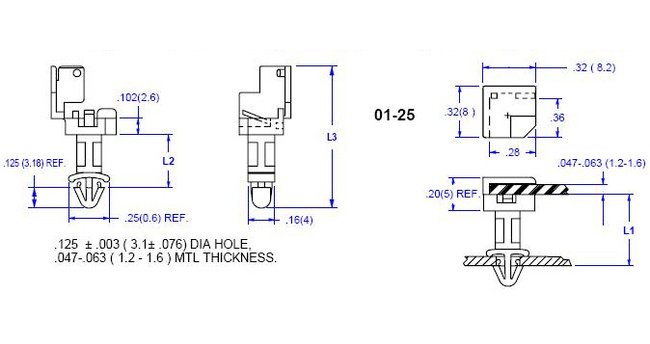

The 25 Series Edge Mount Circuit Board Holder is designed for edge mount circuit boards without requiring a board hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this holder ensures durability and safety. It comes in natural color with precise dimensions including L1: .630in, L2: .528in, L3: .969in, suitable for panel thicknesses from .047 to .063 inches. With a mounting hole diameter of .126 inches, this holder meets ASTM D 4066 and PA111 standards, and is RoHS compliant. It operates within a temperature range of -40 to 185°F (-40 to 85°C), making it ideal for various applications.
Product Specifications
Specifications Color
Natural
Specifications Dim L1
.630 (16.0) inches (mm)
Specifications Dim L2
.528 (13.4) inches (mm)
Specifications Dim L3
.969 (24.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.126 (3.2) inches (mm)
Specifications Panel Thickness
.047 - .063 (1.2 - 1.6) inches (mm)
