Edge Mount Circuit Board Support - 79 Series
Edge Mount Circuit Board Support - 79 Series
SKU:01C-b72e4a
Durable Edge Mount PCB Support with Square Hole Chassis Mount, 1000/bag, Black, RoHS Compliant, Temp Range: -40 to 185F
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Edge Mount Circuit Board Support - 79 Series
$49.99
Quantity: 1
Claim Your Seller Account
Edge Mount Circuit Board Support - 79 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

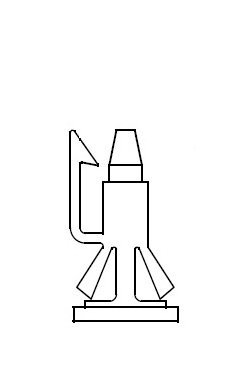

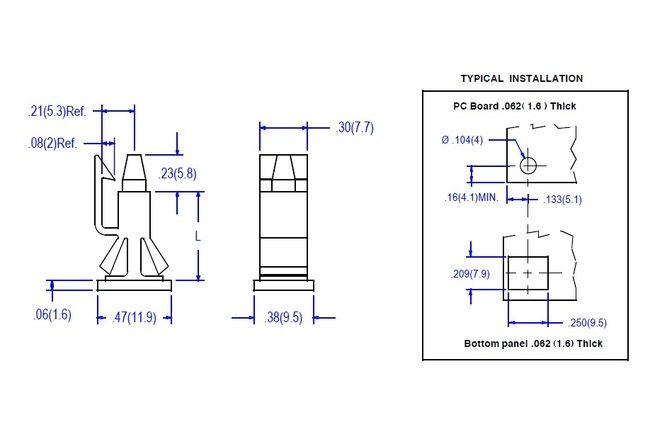

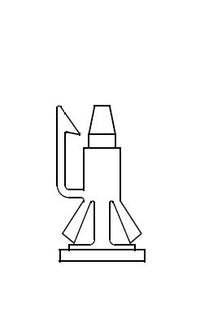

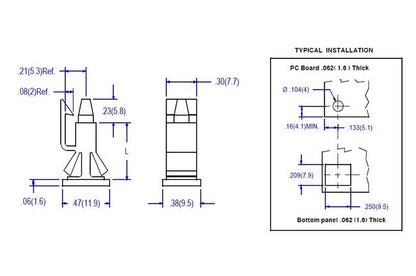

The 79 Series Edge Mount x .156 PCB Hole with Square Hole Chassis Mount is a reliable and sturdy circuit board support suitable for a variety of applications. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is durable, RoHS compliant, and can withstand temperatures ranging from -40 to 185F (-40 to 85C). It features a .437 inches (11.1mm) dimension, ensuring a precise fit. Each pack contains 1000 supports in a sleek black color. ASTM and UL File No. E41938 certified.
Product Specifications
Specifications Dim L In 015 Mm 4
.437 (11.1) inches (mm)
