Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
SKU:01C-126501
Secure your circuit boards with ease using the Edge Mount PCB Support Screw with Self-Tapping Chassis Screw. Made from durable Nylon 66 material, compliant with ASTM D 4066 and RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
$29.99
Quantity: 1
Claim Your Seller Account
Edge Mount PCB Support Screw with Self-Tapping Chassis Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 73 Series Edge Mount PCB Support Screw with Self-Tapping Chassis Screw is a reliable solution for securing circuit boards in place. Designed for .062 thick chassis, this product features a #6 self-tapping chassis screw for easy installation. Made from Nylon 66 UL94V-2 material, this screw is also available in UL94V-0 upon request. Compliant with ASTM D 4066 and RoHS standards, it offers a temperature range of -40 to 185F (-40 to 85C), ensuring durability and stability in various environments.

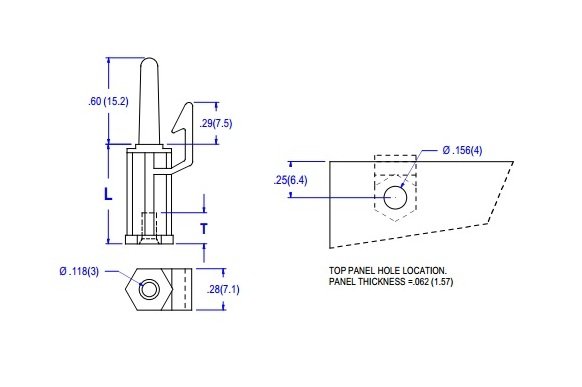

Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
Specifications T Inches Mm
.25 (6.4)
