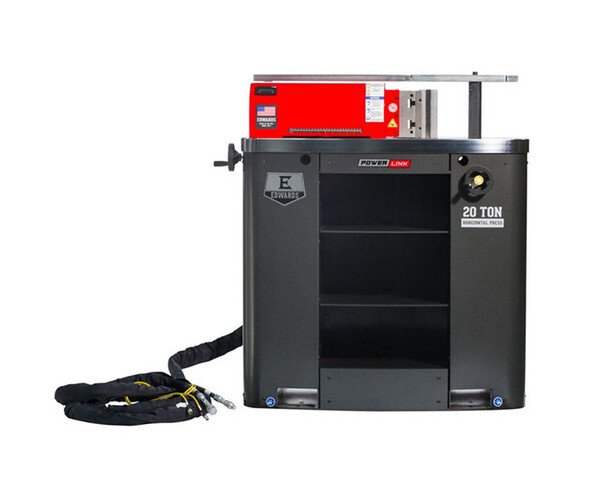

The Edwards 20 Ton Power Link Horizontal Press is a compact powerhouse designed for maximum tooling flexibility, accepting a wide variety of tooling to form, brake, and straighten mild steel. With 20 tons of force, a 2.25-inch cylinder size, and a 10-inch stroke, it offers precise repeatability with a digital encoder. This robust press, with 4 pin locations for custom tooling and a 24 x 42-inch table, is ideal for expanding fabrication capabilities. Easy to operate with Hand/Jog controls and E-Stop, it comes with a standard 6” Brake with 4-Way Die for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
49 in
Dimensions Length
26 in
Dimensions Width
43 in
Features Features
Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling.Ships with a standard 6â Brake with 4-Way Die able to create clips, brackets, hangers and more.Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.Easy to use Hand/Jog controls with integrated E-Stop.20â quick-connect hoses for simple âplug & playâ operation.Digital encoder provides enhanced accuracy for precise repeatability.Robust construction with 2â machine heavy-duty table
Technical Specs Brands
Edwards
Technical Specs Cylinder Size
2.25 in
Technical Specs Phase
1
Technical Specs Power
20 ton
Technical Specs Stroke
10 in
Technical Specs Table Dimensions
24 x 42 in
Technical Specs Voltage
230 V
Technical Specs Working Height
38 in
