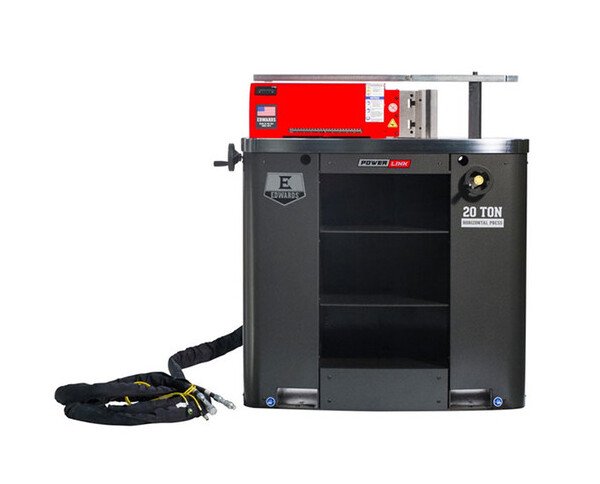

Edwards 20 Ton Power Link Horizontal Press
Edwards 20 Ton Power Link Horizontal Press
SKU:PRE-dd7e23
Enhance fabrication capabilities with the Edwards 20 Ton Power Link Horizontal Press, a compact and powerful machine with 20 tons of force and precise repeatability.
Regular price
$8,399.00
Regular price
Sale price
$8,399.00
Unit price
per
Initiate Order
Edwards 20 Ton Power Link Horizontal Press
$8,399.00
Quantity: 1
Claim Your Seller Account
Edwards 20 Ton Power Link Horizontal Press
$8,399.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Edwards 20 Ton Power Link Horizontal Press is a versatile and robust machine designed for bending, shaping, and straightening mild steel with 20 tons of force. Featuring a compact design, it seamlessly integrates with Edwards Ironworkers via the PowerLink System or Portable Power Unit for enhanced fabrication capabilities. With 4 pin locations for custom tooling, an easy-to-use control system, and a digital encoder for precise repeatability, this horizontal press offers flexibility and accuracy to bring your fabrication ideas to life.
Product Specifications
Dimensions Height
49 in
Dimensions Length
26 in
Dimensions Width
43 in
Features Features
Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling.Ships with a standard 6â Brake with 4-Way Die able to create clips, brackets, hangers and more.Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.Easy to use Hand/Jog controls with integrated E-Stop.20â quick-connect hoses for simple âplug & playâ operation.Digital encoder provides enhanced accuracy for precise repeatability.Robust construction with 2â machine heavy-duty table
Technical Specs Brands
Edwards
Technical Specs Cylinder Size
2.25 in
Technical Specs Phase
3
Technical Specs Power
20 ton
Technical Specs Stroke
10 in
Technical Specs Table Dimensions
24 x 42 in
Technical Specs Voltage
460 V
Technical Specs Working Height
38 in
