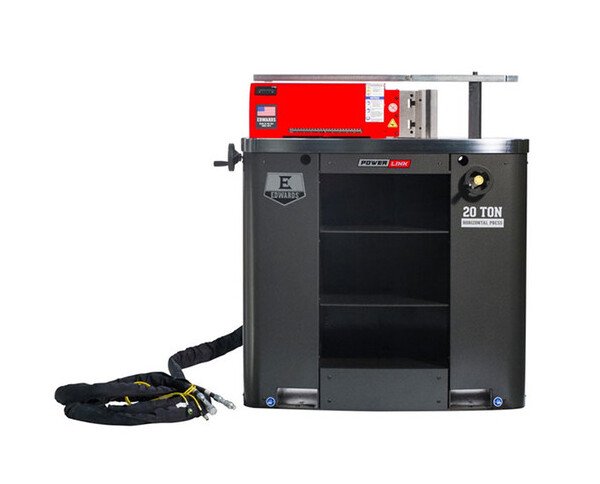

Edwards 20 Ton Power Link Horizontal Press for Ironworkers
Edwards 20 Ton Power Link Horizontal Press for Ironworkers
SKU:PRE-1a18f5
Experience the power of Edwards 20 Ton Horizontal Press for precise metal fabrication. Easy integration with Ironworkers!
Regular price
$7,299.99
Regular price
Sale price
$7,299.99
Unit price
per
Initiate Order
Edwards 20 Ton Power Link Horizontal Press for Ironworkers
$7,299.99
Quantity: 1
Claim Your Seller Account
Edwards 20 Ton Power Link Horizontal Press for Ironworkers
$7,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Edwards 20 Ton Power Link Horizontal Press is a robust solution with 20 tons of force, 2.25" cylinder size, and 10" stroke, designed to form, brake, and straighten mild steel with precision. Featuring 4 pin locations for versatile tooling, a digital encoder for accurate repeatability, and a 24 x 42" heavy-duty table, this powerhouse seamlessly integrates with Edwards Ironworkers. Enhance your fabrication capabilities effortlessly with this compact yet powerful horizontal press.
Product Specifications
Dimensions Height
49 in
Dimensions Length
26 in
Dimensions Width
43 in
Features Features
Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling.Ships with a standard 6â Brake with 4-Way Die able to create clips, brackets, hangers and more.Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.Easy to use Hand/Jog controls with integrated E-Stop.20â quick-connect hoses for simple âplug & playâ operation.Digital encoder provides enhanced accuracy for precise repeatability.Robust construction with 2â machine heavy-duty table
Technical Specs Brands
Edwards
Technical Specs Cylinder Size
2.25 in
Technical Specs Power
20 ton
Technical Specs Stroke
10 in
Technical Specs Table Dimensions
24 x 42 in
Technical Specs Working Height
38 in
