EfficientFlow Dual Passage Rotorseals 6.31 in
EfficientFlow Dual Passage Rotorseals 6.31 in
SKU:CLU-c768d6
Enhanced fluid control with FDA approved Dual Passage Rotorseals. Ideal for high-speed, high-pressure applications. Manufactured by Eaton-Airflex.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
EfficientFlow Dual Passage Rotorseals 6.31 in
$349.99
Quantity: 1
Claim Your Seller Account
EfficientFlow Dual Passage Rotorseals 6.31 in
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior fluid control with our EfficientFlow Dual Passage Rotorseals. With larger passages than standard rotorseals, this FDA-approved product features two inlet and outlet ports for efficient transmission. Utilizing compression grommets for enhanced sealing, this rotor seal ensures seamless operation at speeds up to 1000 rpm and pressures reaching 150 psi. Manufactured by Eaton-Airflex, this product offers reliability and performance for various applications.
Product Specifications

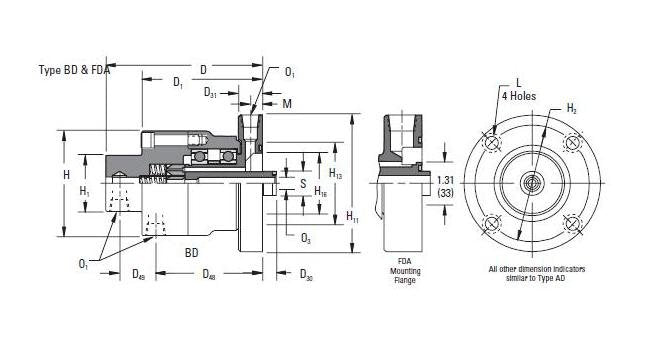

Note 0
Passage consists of eight 0.18 in (4.8 mm) diameter holes.
Specifications Dimension D
6.31 in | 160 mm
Specifications Dimension D1
4.94 in | 125 mm
Specifications Dimension D30
0.250 in | 6 mm
Specifications Dimension D31
1.19 in | 30 mm
Specifications Dimension D48
4.22 in | 107 mm
Specifications Dimension D49
1.47 in | 37 mm
Specifications Dimension H
3.75 in | 95 mm
Specifications Dimension H1
2.06 in | 52 mm
Specifications Dimension H11
4.250 in | 108 mm
Specifications Dimension H13
3.22 in | 82 mm
Specifications Dimension H16
2.25 in | 57 mm
Specifications Dimension H2
3.562 in | 90.5 mm
Specifications Dimension L
0.40 in | 10 mm
Specifications Dimension M
0.63 in | 16 mm
Specifications Dimension O1
1/2-14
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension S
0.750 in | 19.1 mm
Specifications Inner Passage Area
0.196 in² | 1.26 cm²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
1000 rpm
Specifications Outer Passage Area
0.221 in² | 1.43 cm²
Specifications Size
FDA
Specifications Weight
9.4 lb | 4.3 kg
