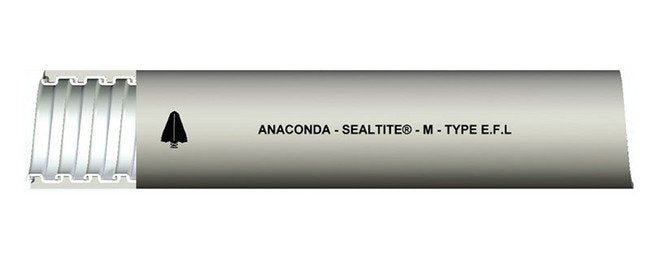

EFL Aluminum Core Liquid-Tight Flexible Metal Conduit

Name: EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-81e52e
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-81e52e

Flexible and durable EFL Aluminum Core Conduit for superior wiring protection in harsh environments.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

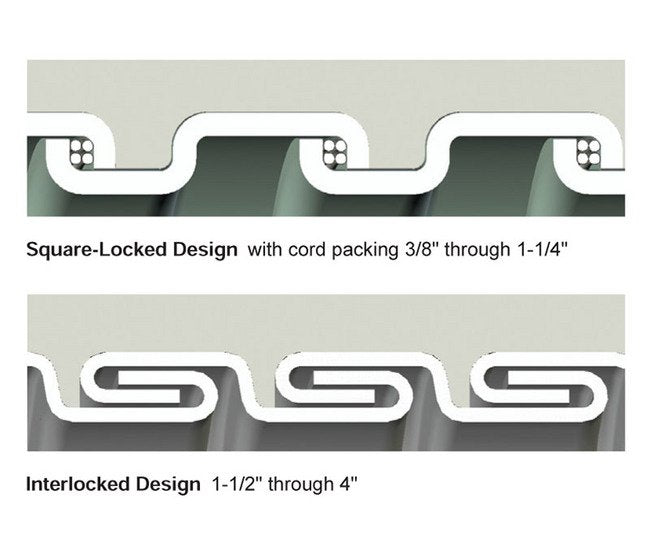

The EFL Aluminum Core Liquid-Tight Flexible Metal Conduit is a reliable solution for wiring applications requiring flexibility and protection. Featuring a continuously interlocked aluminum core and a PVC outer jacket, this conduit offers a liquid-tight raceway suitable for harsh environments. With an IP 67 rating when used with approved connectors, it ensures superior wiring protection without the need for agency approvals. The conduit is designed for a temperature range of -4°F to +176°F (-20°C to +80°C) and is available in various trade sizes. Experience added flexibility, crush strength, and reliable wiring protection with the EFL Aluminum Core Conduit.

Product Specifications

Application 0

Where the Atmosphere is Corrosive and added Flexibility and Crush Strength is ImportantTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -4°F to +176°F (-20°C to +80°C) Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

17 in | 431.8 mm

Specifications Approx Weight Per 100 Ft

196 lbs | 88.90 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

49102 | 55-28-66-02 | 55-28-66-03 | AEF | ALT-19

Specifications Electrical Trade Size

4 in | 103 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

4.000 to 4.040 in | 101.600 to 102.616 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

25 ft | 7.62 m

Specifications Note

Other colors available upon request.

Specifications Outside Diameter

4.460 to 4.500 in | 113.284 to 114.300 mm

Specifications Packaging

Standard Carton

Specifications Type

EFL

EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
