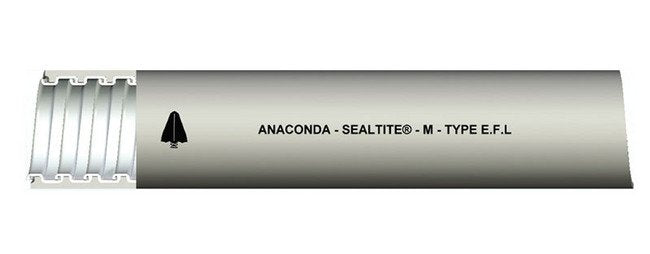

EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
SKU:LIQ-44dbe3
Durable EFL Aluminum Core Liquid-Tight Flexible Conduit for versatile wiring protection in non-agency-approved setups.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
$249.99
Quantity: 1
Claim Your Seller Account
EFL Aluminum Core Liquid-Tight Flexible Metal Conduit
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

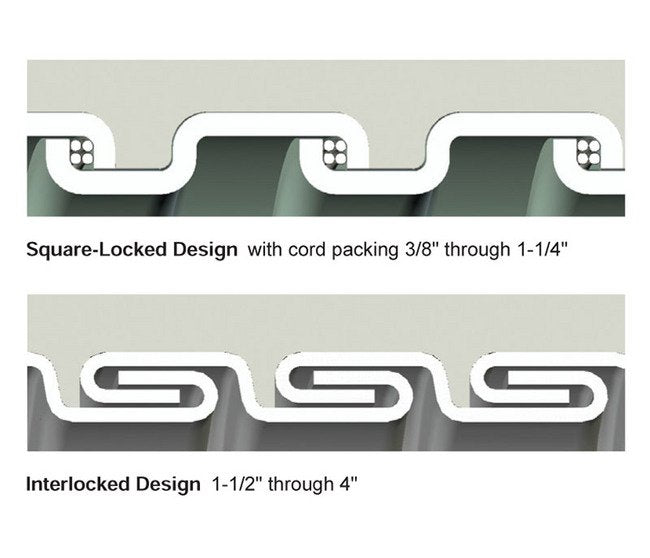

The EFL Aluminum Core Liquid-Tight Flexible Metal Conduit is a reliable solution for creating a flexible, liquid-tight raceway for wiring. With a continuously interlocked aluminum core and a sunlight-resistant PVC outer jacket, this conduit ensures durable protection for electrical conductors. It is IP 67 rated when used with approved connectors and offers a temperature range of -4°F to +176°F (-20°C to +80°C). Ideal for corrosive environments, this conduit provides added flexibility and crush strength, making it suitable for various applications where agency approvals are not required.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where the Atmosphere is Corrosive and added Flexibility and Crush Strength is ImportantTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -4°F to +176°F (-20°C to +80°C) Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
32 lbs | 14.51 kg
Specifications Color
GRAY
Specifications Core Material
Aluminum
Specifications Cross Reference
43102 | 43104 | 55-28-59-03 | 55-28-59-04 | AEF | ALT-13
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Other colors available upon request.
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Standard Carton
Specifications Type
EFL
