EIPS Rated Fine Thread Stud Socket Fitting

Name: EIPS Rated Fine Thread Stud Socket Fitting
Brand: Lexco Cable Manufacturing
SKU: ARC-a0cdf1
Price: 28.99 USD
Availability: OutOfStock

SKU:ARC-a0cdf1

Premium EIPS Rated Stud Socket Fitting for secure installations on wire rope, ensuring strength and durability for architectural cable railings.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

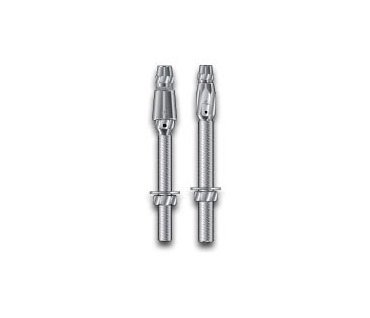

The EIPS Rated Fine Thread Stud Socket Fitting is a premium component designed for architectural cable railings, ensuring secure installations on wire rope or aircraft cable. Crafted from self-colored steel with fine thread specifications, this fitting offers exceptional strength with an EIPS Breaking Strength of 26,600#. Compliant with industry standards for linear applications, it is essential for robust and reliable railing assemblies. Enhance your railing project with the superior quality and durability of this stud fitting.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

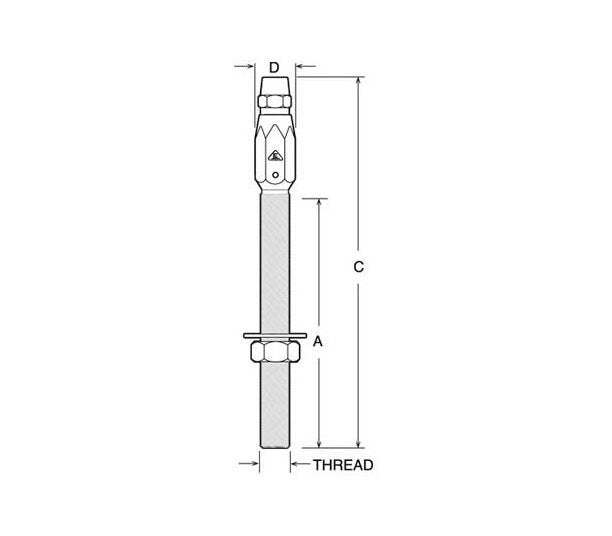

Specifications Dim A

6-15/16 "

Specifications Dim C

11 "

Specifications Dim D

1-7/16 "

Specifications Eips Breaking Strength

26,600#

Specifications Material Finish

Self-Colored Steel

Specifications Rope Size

1/2 "

Specifications Thread Size

7/8-14

Specifications Thread Type

Fine

CAGE

0T9L4

NAICS

332510

PSC

4030
