Elastomer Seal Bulkhead Connection with Equipped B3 Ring
Elastomer Seal Bulkhead Connection with Equipped B3 Ring
SKU:FIT-3f5d28
Reliable Elastomer Seal Bulkhead Connection for institutional use, meets DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Elastomer Seal Bulkhead Connection with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Elastomer Seal Bulkhead Connection with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Elastomer Seal Bulkhead Connection with Equipped B3 Ring offers a reliable light-duty solution for instituional needs. With a nominal operating pressure of 160 bar, this carbon steel fitting ensures durability and performance. Compliant with DIN 2353 standards, it features a tube diameter of 35.0 mm and precise thread sizes for a secure seal.

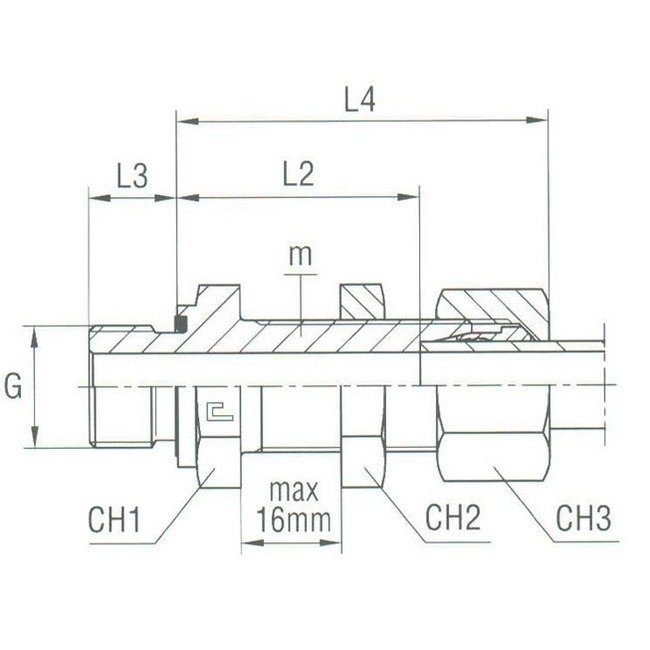

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
55 mm
Specifications Ch3
50 mm
Specifications G Thread Size
1 1/4
Specifications L2
52.5 mm
Specifications L3
20.0 mm
Specifications L4
74 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
