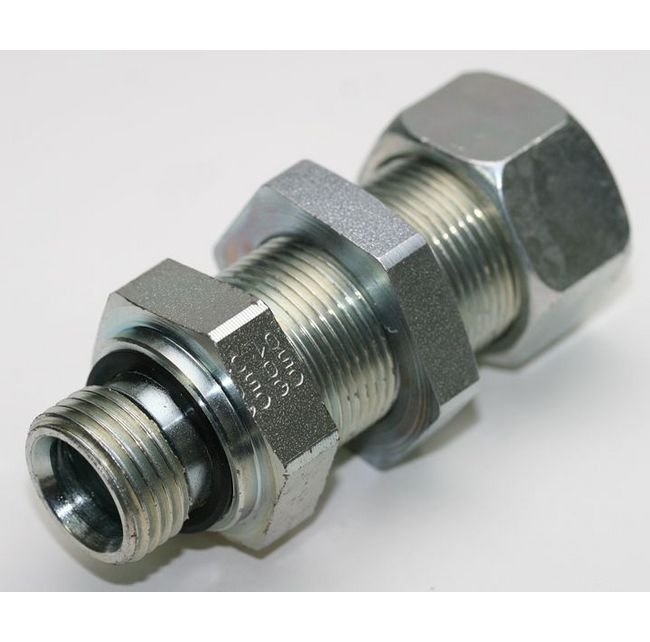

The Elastomer-Sealed Bulkhead Connection with BSP Parallel Threads, equipped with B3 Ring, is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. Featuring precise dimensions including 8.0mm tube diameter and 14x1.5 mm thread size, it meets DIN 2353 standards for optimal performance. The Bulkhead Connection with Elastomer Seal Thread BSP Parallel provides a secure and leak-free connection essential for various industrial settings.

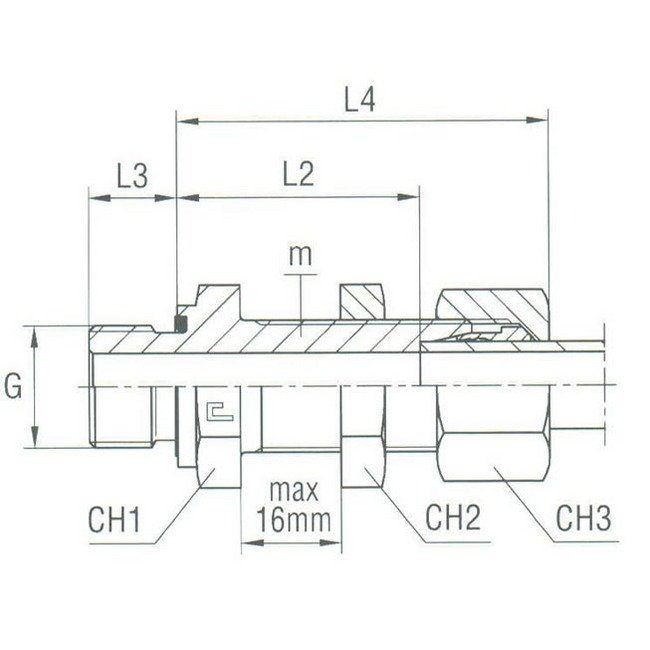

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications G Thread Size

1/4

Specifications L2

34.0 mm

Specifications L3

12.0 mm

Specifications L4

49 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm
