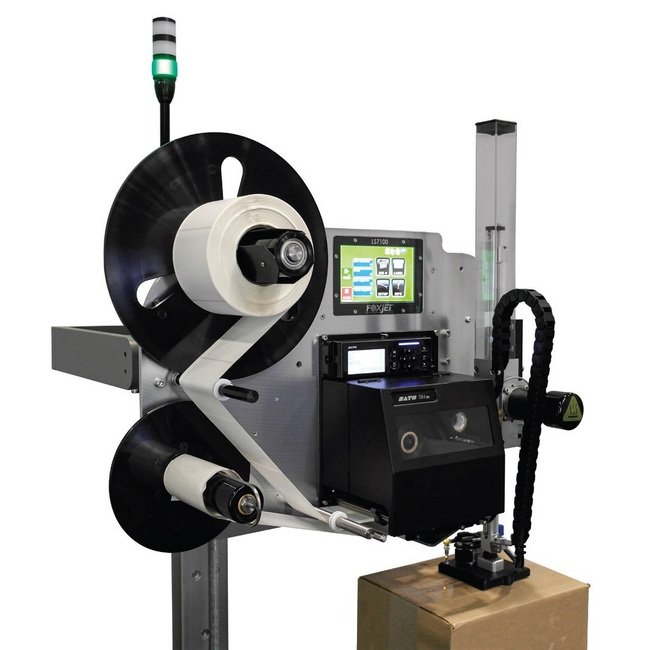

Electric Labeler Series with Smart Label Dispensing Technology
Electric Labeler Series with Smart Label Dispensing Technology
SKU:LAB-e59546
Efficient Electric Labeler Series with smart dispensing tech for precise and reliable labeling. Dual redundancy for minimized downtime and remote access capabilities.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
Electric Labeler Series with Smart Label Dispensing Technology
$7,999.00
Quantity: 1
Claim Your Seller Account
Electric Labeler Series with Smart Label Dispensing Technology
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior labeling efficiency with our Electric Labeler Series featuring innovative smart label dispensing technology. This system ensures precise and reliable operation, with dual redundancy capabilities to minimize downtime. The user-friendly color touchscreen interface provides easy access for remote adjustments and monitoring. With certifications including IEC and FCC standards, this labeler guarantees both performance and compliance for institutional procurement needs.
Product Specifications
Accuracy Accuracy E Tampblow High Speed Tamp
0.09 in | 2.4 mm
Accuracy Accuracy E Tamp E Wasa E Fasa
0.06 in | 1.6 mm
Applicator Modules Applicator Modules
E-WASA HD Corner Wrap Apply ModuleWipe Around Side Apply Module - Heavy-DutyKey FeaturesProvides front to side or front to top label corner wrappingWrap tightness adjusted with dampening air cushion cylinderBuilt-in smart sensor to prevent multiple label feedsE-FASA Swing Arm ModuleFront, Top, Side, Rear or combination of two adjacent panelsKey FeaturesProvides either front panel labeling, rear panel labeling, or a combination of front-side, side-rear, front-top or top-rearCapable of applying corner wrapped labelsThe pivoting knuckle tamp pad allows for higher throughput rates than actuator modules, with less failure points and adjustmentsUser interface that promotes simplicity and intelligenceKey FeatureQuick troubleshooting with on-screen diagnostics from real time smart sensor feedbackEasy to read full color display - change in portrait or landscape orientations electronicallyFunctionality for redundant mode to pair systems for zero downtime line requirements
Line Speed Line Speed E Fasa
0 to 75 ppm
Line Speed Line Speed E Tamp E Tampblow
0 to 150 ppm
Line Speed Line Speed E Wasa
0 to 125 ppm
Line Speed Line Speed High Speed Tamp
Up to 300+ ppm
Product Rate Dual Apply Product Rate E Fasa
0 to 28 ppm
Product Rate Product Rate E Tamp
0 to 120 ppm
Product Rate Product Rate E Tampblow
0 to 55 ppm
Product Rate Product Rate E Wasa
Dependent on Label Length, Print Speed and Product Spacing
Product Rate Product Rate High Speed Tamp
Application Dependent
Product Rate Single Apply Product Rate E Fasa
0 to 52 ppm
Technical Specs Certifications
IEC 61000-6-2 2005/AC: 2005 Immunity | IEC 61000-6-4 2007/A1: 2011 Emission | FCC Part 15b | CSA CAN/CSA-C22.2 No. 62368-1:2014 | UL62368-1:2014
Technical Specs Core Diameter
3 in | 76.2 mm
Technical Specs Depth With Yoke
26 in | 660 mm
Technical Specs Height With Yoke
27 in | 868 mm
Technical Specs Label Length
0.5 to 14 in | 12.7 to 355.6 mm
Technical Specs Label Width
0.5 to 6.5 in | 12.7 to 165.1 mm
Technical Specs Length With Yoke
31 in | 787 mm
Technical Specs Non Condensing Relative Humidity Rh
10 to 85 %
Technical Specs Supply Roll Capacity Outside Diameter Od
14 in | 355.6 mm
Technical Specs Temperature Range
41 to 104 ºF | 5 to 40 ºC
Weight Note For Weight Chi Stand
Includes Yoke, No Stand
Weight Note For Weight E Fasa
Includes Yoke, No Stand
Weight Note For Weight E Tamp E Wasa High Speed Tamp
Includes Yoke, No Stand
Weight Weight Chi Stand
83 lb | 37.6 kg
Weight Weight E Fasa
130 lb | 58.9 kg
Weight Weight E Tamp E Wasa High Speed Tamp
120 lb | 54.4 kg
