Electric MAB Series Actuator - 120VAC
Electric MAB Series Actuator - 120VAC
SKU:VAL-0d0e14
Reliable Electric MAB Series Actuator for automated valve operation in industrial environments. Explosion-proof, NEMA 7 compliant. Ideal for labs, pilot plants, and chemical research.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Electric MAB Series Actuator - 120VAC
$349.99
Quantity: 1
Claim Your Seller Account
Electric MAB Series Actuator - 120VAC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Electric MAB Series Actuator is a reliable solution for operating ball valves in various industrial settings. With an operating temperature range from -4oF to 158oF (-20oC to 70oC), this actuator features a powder-coated aluminum housing that is CE and CSA approved. Its explosion-proof enclosure (ATEX Approved) and NEMA 7 compliance ensure safety in hazardous environments. The actuator can be interfaced with control systems for automation, making it ideal for laboratories, pilot plants, and chemical research facilities. Available in 120 & 220 VAC, with ATEX Flameproof and Explosion Proof options, the MAB Series Actuator is a versatile and dependable choice for critical operations.
Product Specifications

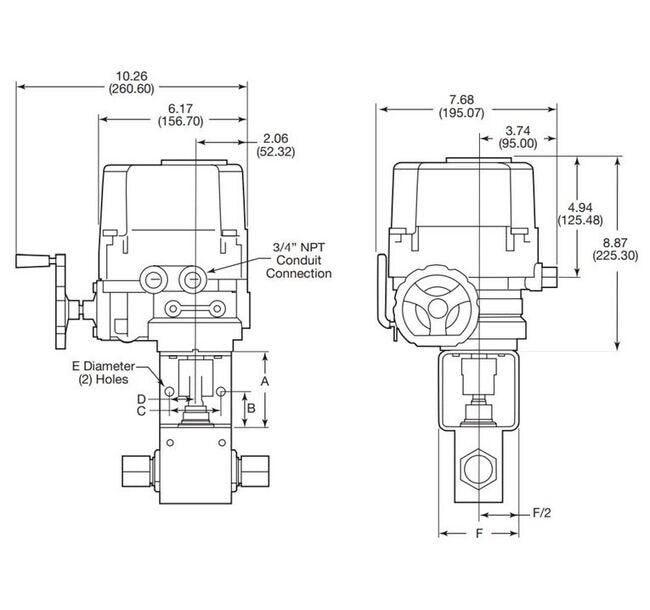

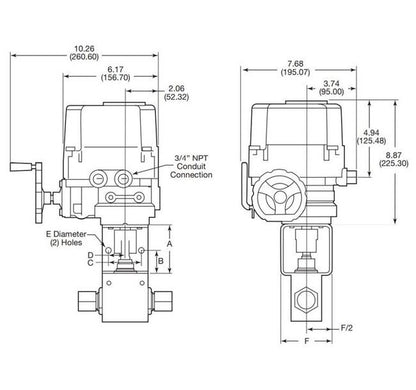

Dimensions A
2.50 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
