Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

RIG-d9db0c

Premium Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope. Ideal for heavy lifting and pulling tasks.

$299.99
$299.99
Sale

Initiate Order

Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

$299.99

Quantity: 1

Claim Your Seller Account

Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

Electric Winch Bend Sheaves with Mounting Frame - 12000 lbs Capacity, 3/4" Wire Rope

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Electric Winch Bend Sheaves with Mounting Frame is a robust solution designed for heavy-duty lifting and pulling tasks. With a high capacity of 12000 lbs and a wire rope diameter of 3/4 inches, this versatile accessory is ideal for demanding applications. The model BS features precise dimensions and is equipped for electrical brake requirements, ensuring safety and control during operations. Whether mounted horizontally, inverted on the ceiling, or vertically, this winch accessory offers reliable performance and durability for enhanced productivity.

Product Specifications

Specifications Capacity
12000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

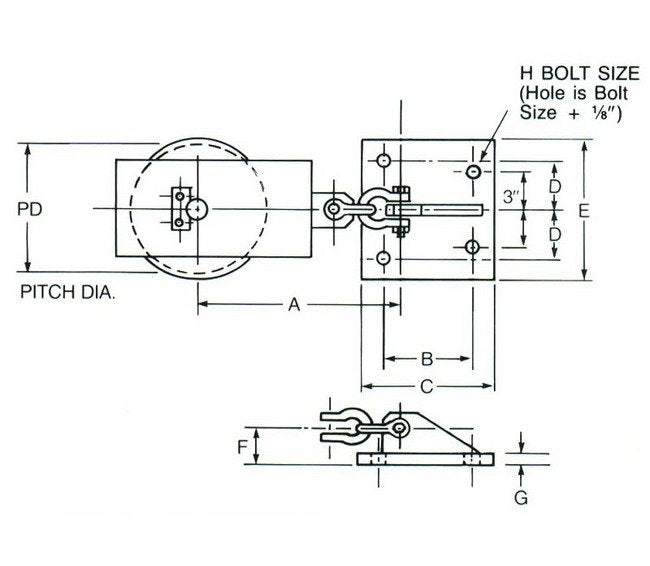

Specifications Dimension A
25 1/4 inches
Specifications Dimension B
10 inches
Specifications Dimension C
13 1/2 inches
Specifications Dimension D
5 inches
Specifications Dimension E
13 1/2 inches
Specifications Dimension F
4 1/2 inches
Specifications Dimension G
1 inches
Specifications Dimension H
1 1/4 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
