Electric Winch Bend Sheaves with Mounting Frame - 6000 lbs Capacity
Electric Winch Bend Sheaves with Mounting Frame - 6000 lbs Capacity
SKU:RIG-2f783b
Enhance your electric winch with this 6000 lbs capacity bend sheaves for safe and efficient lifting and pulling tasks.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Electric Winch Bend Sheaves with Mounting Frame - 6000 lbs Capacity
$149.99
Quantity: 1
Claim Your Seller Account
Electric Winch Bend Sheaves with Mounting Frame - 6000 lbs Capacity
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Electric Winch Bend Sheaves with Mounting Frame is a robust and versatile accessory designed for heavy-duty lifting and pulling tasks. With a high capacity of 6000 lbs and a wire rope diameter of 1/2 inches, this bend sheave assists in smooth wire rope winding. The mounting frame offers flexible installation options, including horizontal base, inverted ceiling, or vertical mounting. Equipped with an electrical brake for enhanced safety, this accessory is essential for applications requiring precise controls. The lever drum mounted at the winch and magnetic remote pushbutton control ensure efficient operation and usability, making it ideal for industrial and commercial use.

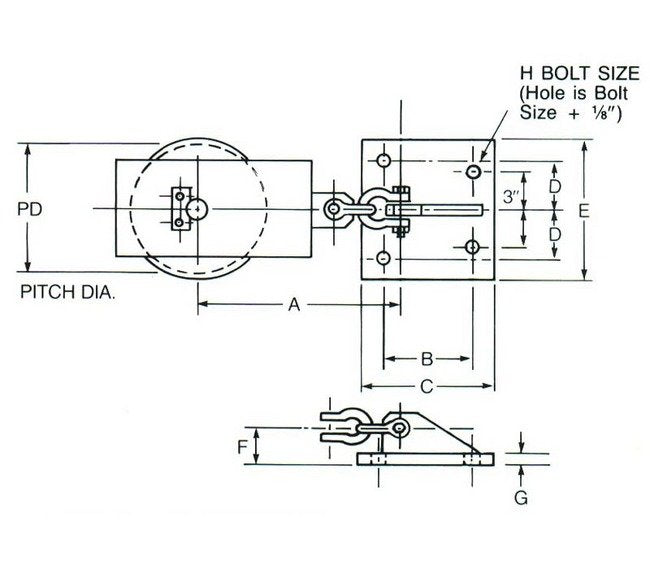

Product Specifications
Specifications Capacity
6000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
17 1/2 inches
Specifications Dimension B
10 inches
Specifications Dimension C
13 inches
Specifications Dimension D
4 inches
Specifications Dimension E
11 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
3/4 inches
Specifications Dimension H
1 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
8 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1/2 inches
