Electrified Monorail Trolley with Short Collector
Electrified Monorail Trolley with Short Collector
SKU:USM-c67dfa
Enhance rail system efficiency with the United States Monorail Short Collector Trolley. Optimal contact, reduced arcing, and precise alignment ensure maximum performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Electrified Monorail Trolley with Short Collector
$129.99
Quantity: 1
Claim Your Seller Account
Electrified Monorail Trolley with Short Collector
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

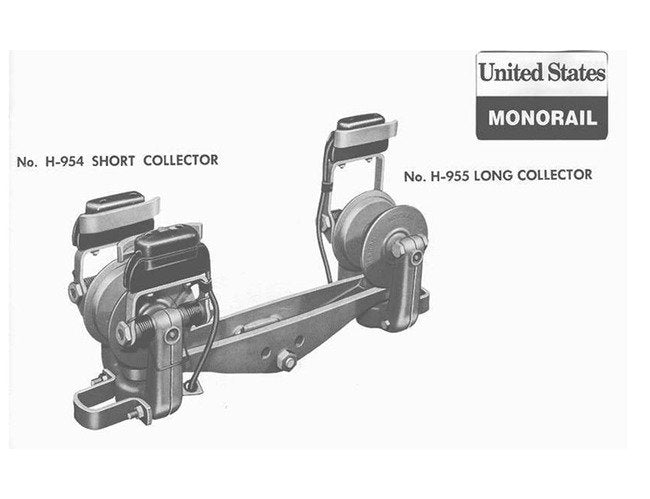

The Short Collector Electrified Monorail Trolley by United States Monorail features a sturdy hard copper alloy shoe design with bakelite insulators for optimal contact and reduced arcing. Equipped with double coil springs and a sliding shoe type configuration, this trolley ensures consistent polished conductors and maximum efficiency. Each trolley yoke can accommodate two collectors, guaranteeing precise alignment with conductor bars even on curves, making it ideal for high-speed railway electrification applications.
Product Specifications
Additional Information Additional Information

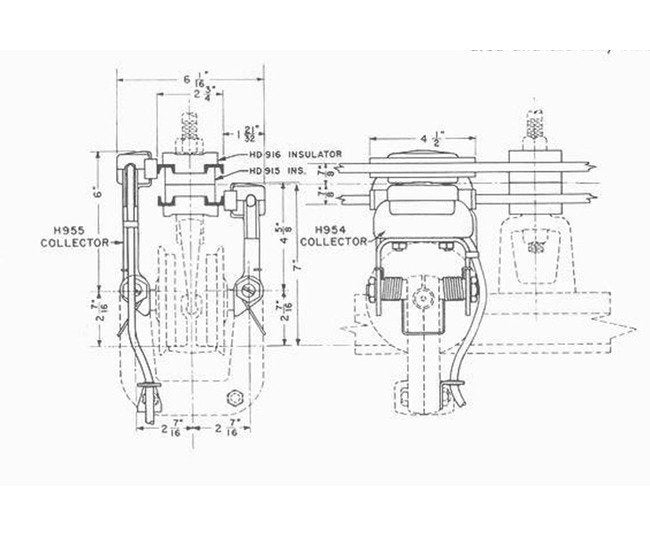

Collectors may be mounted on all standard United States Monorail trolleys except light duty trolleys. Each yoke will accommodate two collectors. Each collector is mounted at the top of the trolley yoke to assure accurate relation to the conductor bar when trolley passes around curves.
Specifications Manufacturer
United States Monorail
