Electro-Luber⢠6-Port Single Line Grease Dispenser
Electro-Luber⢠6-Port Single Line Grease Dispenser
SKU:ELE-52efba
Efficiently distribute grease to 6 lubrication points with the Electro-Luber⢠6-Port Single Line Grease Dispenser, ensuring smooth machinery lubrication.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Electro-Luber⢠6-Port Single Line Grease Dispenser
$189.99
Quantity: 1
Claim Your Seller Account
Electro-Luber⢠6-Port Single Line Grease Dispenser
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

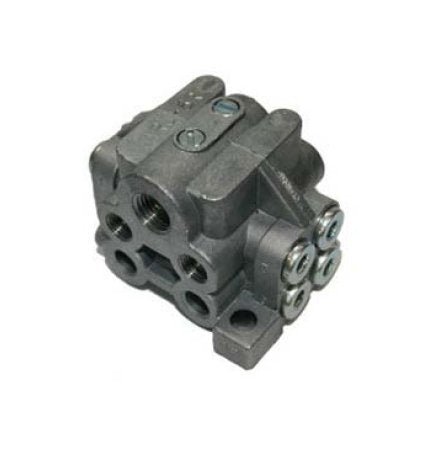

The Electro-Luber⢠6-Port Single Line Grease Dispenser is a progressive distribution block designed to efficiently distribute grease to 6 lubrication points. Featuring an indicator pin that signals cycle completion and prevention of operation blockage, this dispenser ensures smooth lubrication for machinery. Easily join ports for customized lubrication needs, with standard plumbing fittings or port connectors available. With a discharge volume of 0.3 cm³ per outlet port and easy priming via zirk fitting, this dispenser, when paired with an ULTIMATE lubricator, offers a complete multi-point grease lubrication solution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Discharge Volume Per Outlet Port
0.3 cm³
Specifications Distribution Block Kit Components
1 4-port Distribution Block | 12-3/8 Inch (in) Comp X 1/4 Inch (in) Male Pipe Thread (MPT) Connectors | 3/8 Inch (in) Outer Diameter (OD) Hose not included
Specifications Inlet
Automatic Transfer Switches (ATS) recommends installing the ultimate lubricator as close to the block as possible. The optimum location is directly on the block.
Specifications Inlet Port Size
1/4 in
Specifications Inlet Thread Type
Female National Pipe Thread (FNPT)
Specifications Note
After installation, all lines need to be primed using a grease gun attached to the zirk fitting on the block until grease is flowing from all outlets.
Specifications Number Of Ports
6
Specifications Outlet
Automatic Transfer Switches (ATS) recommends a maximum of 10 Feet (ft) of 3/8 Inch (in) Outer Diameter (OD) by 1/4 Inch (in) Inner Diameter (ID) Air Brake Hose on each outlet port.
Specifications Outlet Port Size
1/8 in
Specifications Outlet Port Thread Type
Female National Pipe Thread (FNPT)
Specifications Weight
1.3 lb | 0.6 kg
