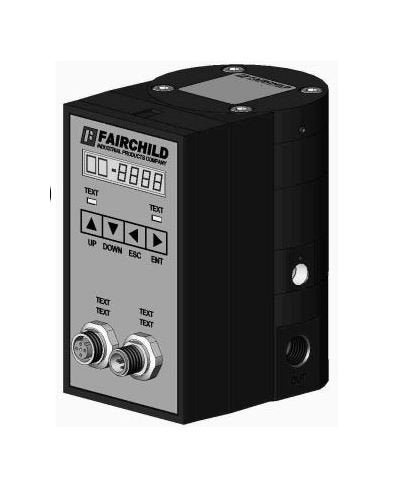

Electro-Pneumatic Transducer - High-Pressure Model

Electro-Pneumatic Transducer - High-Pressure Model

SKU:HIG-907f5f

High-Pressure Electro-Pneumatic Transducer for precise industrial pressure control. CE approved, compact design.

Regular price $499.99
Regular price Sale price $499.99
Sale

Initiate Order

Electro-Pneumatic Transducer - High-Pressure Model

Electro-Pneumatic Transducer - High-Pressure Model

$499.99

Quantity: 1

Claim Your Seller Account

Electro-Pneumatic Transducer - High-Pressure Model

Electro-Pneumatic Transducer - High-Pressure Model

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High-Pressure Electro-Pneumatic Transducer is a robust solution designed for precise pressure control in industrial settings. With a maximum flow capacity of 1000 ft³/min and an output pressure range of 300 to 750 psig, this transducer ensures reliable performance under high-pressure conditions. It features Full Scale (FS) accuracy of 0.5% and supports DC Voltage Supply of 0 to 10V or 4 to 20mA, making it versatile for various applications. With European Conformity (CE) approval and compact dimensions of 3 x 4-7/64 x 4-15/16 inches, this transducer is ideal for both consumer and institutional buyers seeking quality and compliance.

Product Specifications

Specifications Dc Voltage Supply
0 to 10 V | 4 to 20 mA
Specifications Dimensions
3 x 4-7/64 x 4-15/16 in | 76 x 37.7 x 125.3 mm
Specifications Exhaust Capacity When Downstream Pressure Is 300
190 ft³/min | 322.8 m³/h
Specifications Full Scale Fs Accuracy
0.5 %
Specifications Full Scale Fs Repeatability
<0.1 %
Specifications Maximum Air Consumption At Steady State
0 ft³/min | 0 m³/h
Specifications Maximum Flow Capacity At Supply Of 600 Pounds Per
1000 ft³/min | 1699.2 m³/h
Specifications Maximum Pressure Supply
1000 psig | 7000 kPa
Specifications Output Pressure
300 to 750 psig | 2068 to 5171 kPa
Specifications Pipe Size
1/2 | 1/4 | 3/4 | 3/8
Specifications Underwriting Group Approvals
European Conformity (CE)
