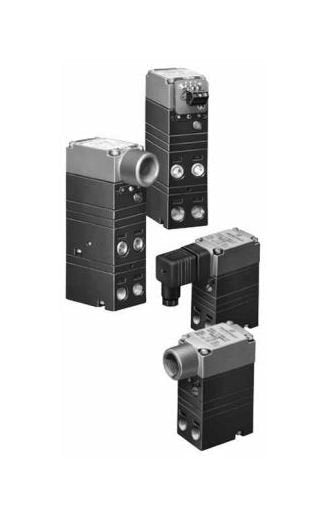

Electro-Pneumatic Transducer T7800
Electro-Pneumatic Transducer T7800
SKU:ELE-1ba8d3
High-performance Electro-Pneumatic Transducer for precise pressure control in industrial applications. Meet international standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Electro-Pneumatic Transducer T7800
$599.99
Quantity: 1
Claim Your Seller Account
Electro-Pneumatic Transducer T7800
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Electro-Pneumatic Transducer T7800 is a high-performance device designed for precise pressure control. With a maximum flow capacity of 9 ft³/min, output pressure range of 0 to 120 psig, and exceptional accuracy of 0.15%, this transducer ensures reliable operation in demanding industrial environments. It meets C, E, CE, and F approvals, making it compliant with international standards, ideal for government and institutional procurement needs.
Product Specifications
Specifications Dc Voltage Supply
0 to 5 V | 0 to 10 V | 1 to 5 V | 1 to 9 V | 4 to 20 mA
Specifications Dimensions
1-1/2 x 3-1/8 x 3-3/4 in | 38 x 79 x 95 mm
Specifications Exhaust Capacity
3.4 m³/h
Specifications Full Scale Fs Repeatability
<0.1 %
Specifications Maximum Air Consumption
5.5 to 15.0 ft³/min | 0.16 to 0.42 m³/h
Specifications Maximum Flow Capacity At Supply Of 120 Pounds Per
9 ft³/min | 15.3 m³/h
Specifications Output Pressure
0 to 120 psig | 3 to 15 psig | 0 to 800 kPa | 20 to 100 kPa
Specifications Pipe Size
1/4
Specifications Pressure Supply
20 to 150 psig | 150 to 1000 kPa
Specifications Full Scale Fs Accuracy
0.15 %
Specifications Underwriting Group Approvals
C | E | European Conformity (CE) | F
