Electromagnet - Small Round Flat Faced (1 3/4 x 1 5/8 in)
Electromagnet - Small Round Flat Faced (1 3/4 x 1 5/8 in)
SKU:SMA-844a81
Versatile Small Round Flat Faced Electromagnet for secure gripping and strong magnetic force. Ideal for manual or automated usage.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Electromagnet - Small Round Flat Faced (1 3/4 x 1 5/8 in)
$89.99
Quantity: 1
Claim Your Seller Account
Electromagnet - Small Round Flat Faced (1 3/4 x 1 5/8 in)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

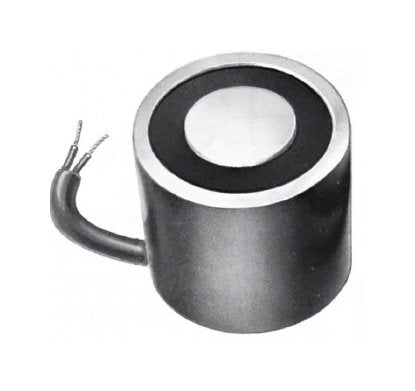

The Small Round Flat Faced Electromagnet is a versatile solution for both manual and automated applications. With a diameter of 1 3/4 inches, height of 1 5/8 inches, and a pull capacity of 160 lbs on low carbon steel, this electromagnet delivers strong magnetic force. It operates at 12V standard DC voltage, with optional ratings at 24V and 110V, consuming 3W power. Designed for flat, smooth surfaces, this electromagnet ensures optimal contact for secure gripping. Manufactured to meet stringent standards, it offers reliability and efficiency for industrial and institutional applications. Consult the factory for customized sizes and applications.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
1 3/4 in
Specifications Height B
1 5/8 in
Specifications Location Of Leads E
3/8
Specifications Net Weight
11 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
3 W
Specifications Pull Capacity
160 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
1/4 to 20 in
Specifications Thread Depth D
1/2 in
