Electromagnetic Chuck Controller
Electromagnetic Chuck Controller
SKU:SDS-d785b5
High-performance Electromagnetic Chuck Controller for precise and efficient operations.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Electromagnetic Chuck Controller
$899.99
Quantity: 1
Claim Your Seller Account
Electromagnetic Chuck Controller
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

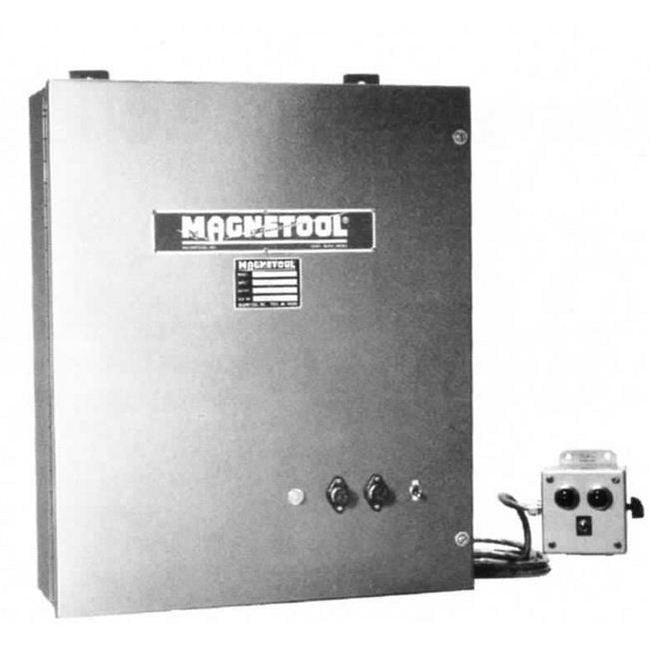

The Electromagnetic Chuck Controller from the SD Series is a high-performance solution designed for applications requiring strong chuck demagnetization and high wattage ratings. With a power output of 2000W and AC input voltage options of 240V or 480V, this controller ensures efficient operation. The compact main enclosure, measuring 20" x 24" x 11", can be rear-mounted or wall-mounted, offering flexibility in installation. The operator-friendly design features a front-mounted small enclosure (4" x 4" x 3") with an On-Off control switch, green and red indicator lights, and a variable power switch, allowing precise control from 0 to 100% power for easy part removal. Increase productivity and accuracy with the Electromagnetic Chuck Controller, ideal for industrial and institutional settings.
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Advantages
The operator can then remove the part with ease. The variable power control provides 0 to 100% power.
Specifications Dc Output Voltage
0 to 230 V
Specifications Main Enclosure Depth
11 in
Specifications Main Enclosure Height
24 in
Specifications Main Enclosure Width
20 in
Specifications Power
2000 W
