Electromagnetic Chuck Controller for High Demagnetization Requirements

Name: Electromagnetic Chuck Controller for High Demagnetization Requirements
Brand: Magnetool, Inc.
SKU: SDS-a8e6f8
Price: 699.99 USD
Availability: OutOfStock

SKU:SDS-a8e6f8

Get precise control with the SD Series Automatic Electromagnetic Chuck Controller for high demagnetization needs.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

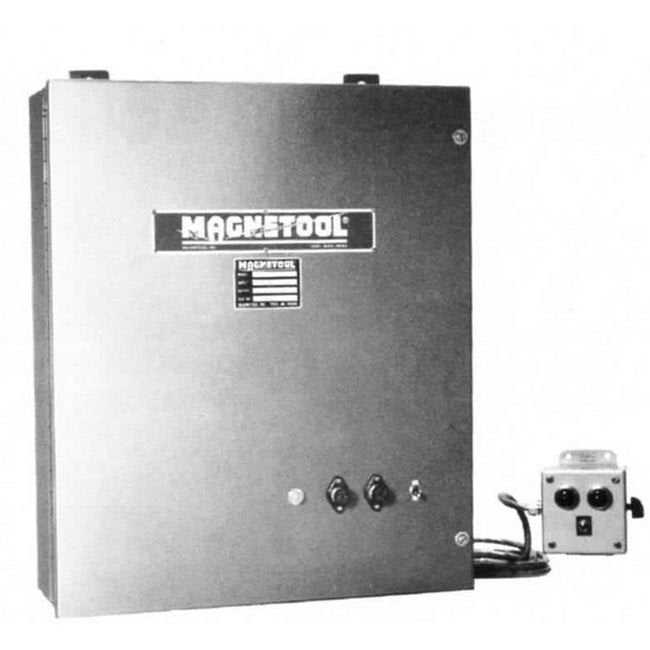

The SD Series Automatic Electromagnetic Chuck Controller is designed for applications requiring greater chuck demagnetization and chucks with high wattage ratings. With a power of 500W and AC Input Voltage options of 240V or 480V, this controller offers precise control with a variable 0 to 110VDC output voltage. Featuring solid-state circuitry and a dust-tight main enclosure, it includes a convenient remote control unit with indicating lamps for easy operation. The 'Residual Hold' feature and electronic demagnetizing cycle ensure efficient and safe chuck operation, allowing operators to work with ease.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

7 in

Specifications Main Enclosure Height

20 in

Specifications Main Enclosure Width

16 in

Specifications Power

500 W
