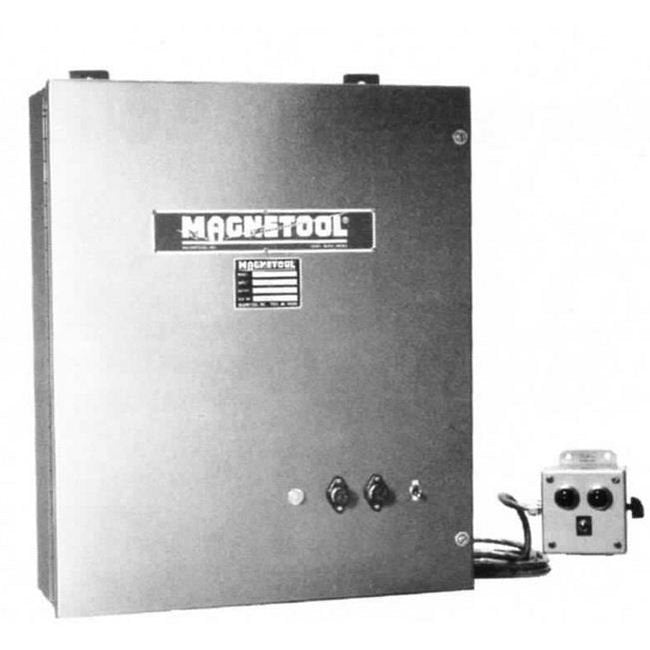

Electromagnetic Chuck Controller - SD Series
Electromagnetic Chuck Controller - SD Series
SKU:SDS-cd24a9
Enhance chuck demagnetization with precision control. Ideal for high wattage chucks. Easy to operate with variable power switch.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Electromagnetic Chuck Controller - SD Series
$799.99
Quantity: 1
Claim Your Seller Account
Electromagnetic Chuck Controller - SD Series
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SD Series Automatic Electromagnetic Chuck Controller is designed for high demagnetization needs and chucks with high wattage ratings. With a power capacity of 3000 W and AC Input Voltage options of 240 V or 480 V, this controller offers precise control from a compact enclosure. Its advantages include easy part removal facilitated by the variable power switch, ensuring power levels from 0 to 100%. Ideal for institutional and government procurement, this controller meets stringent standards ensuring reliable performance and compliance.
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Advantages
The operator can then remove the part with ease. The variable power control provides 0 to 100% power.
Specifications Dc Output Voltage
0 to 230 V
Specifications Main Enclosure Depth
11 in
Specifications Main Enclosure Height
24 in
Specifications Main Enclosure Width
20 in
Specifications Power
3000 W
